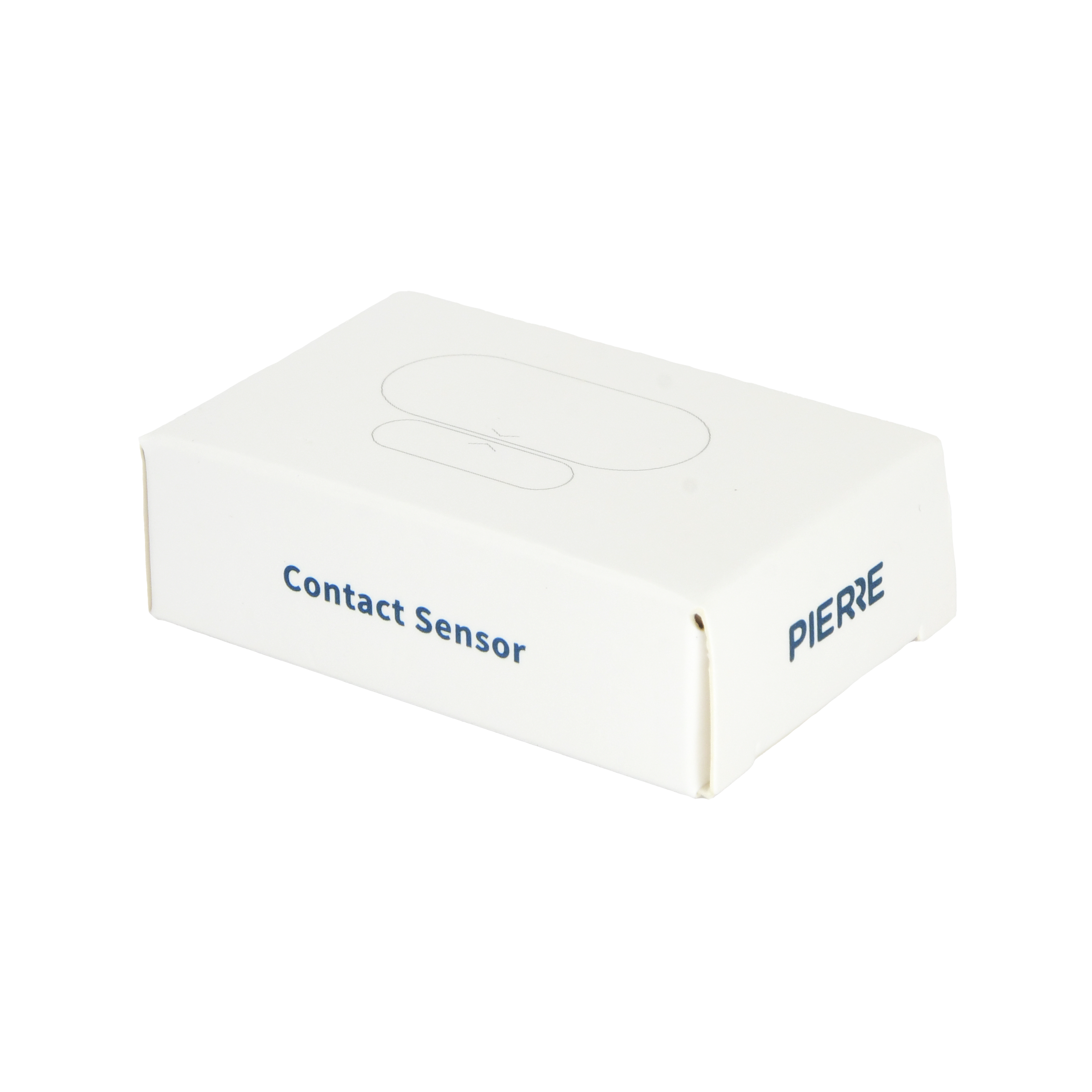

Measurements (box)
Specifications

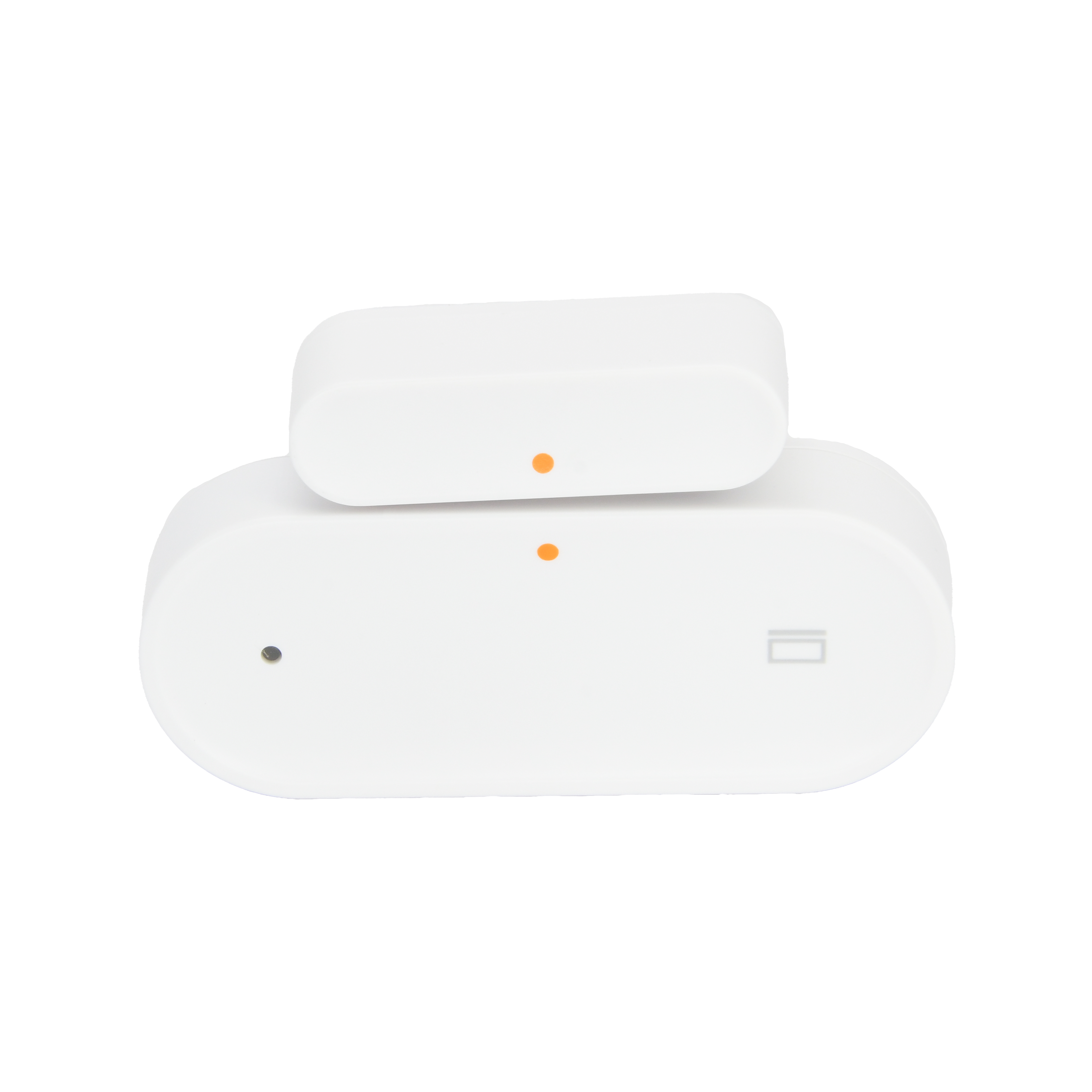

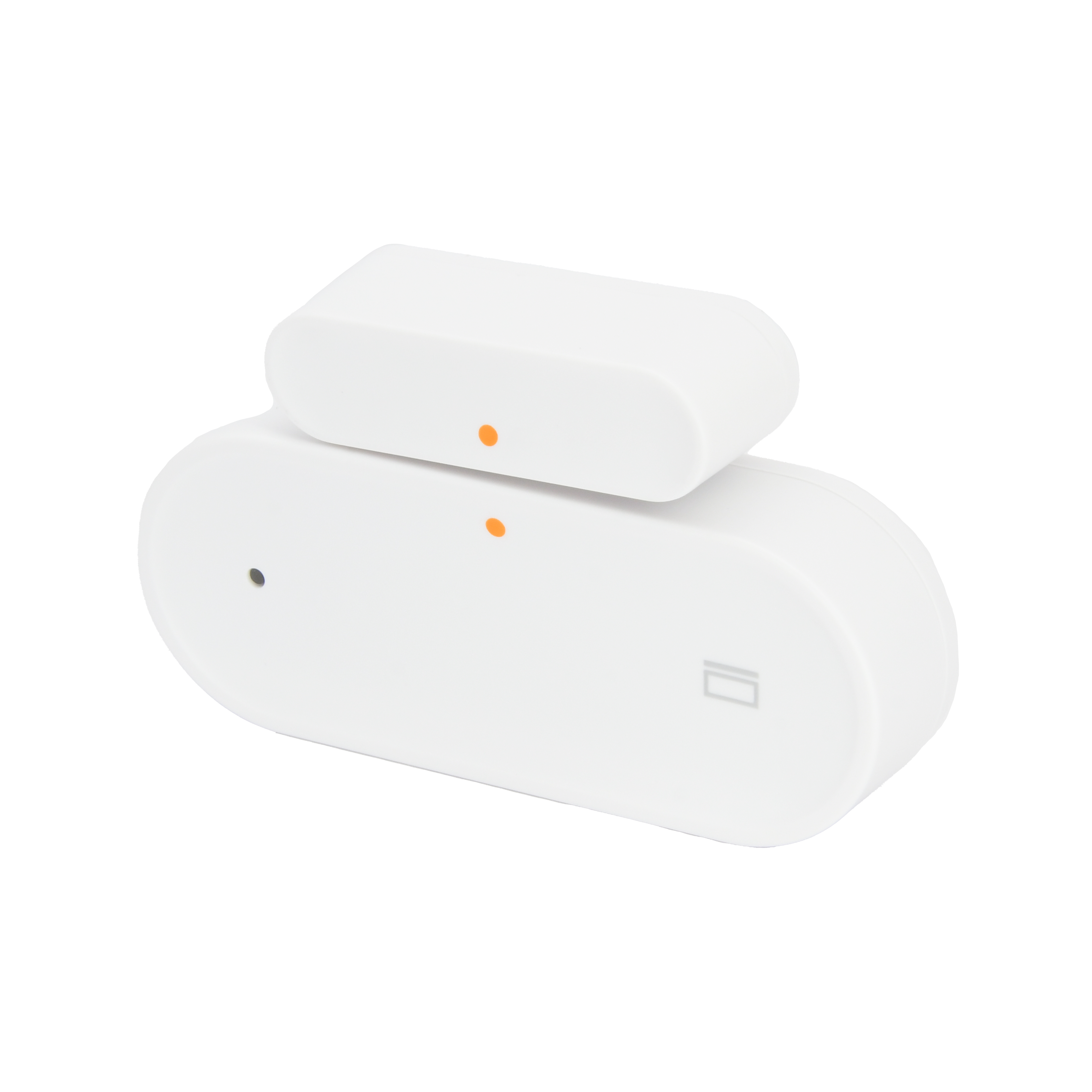

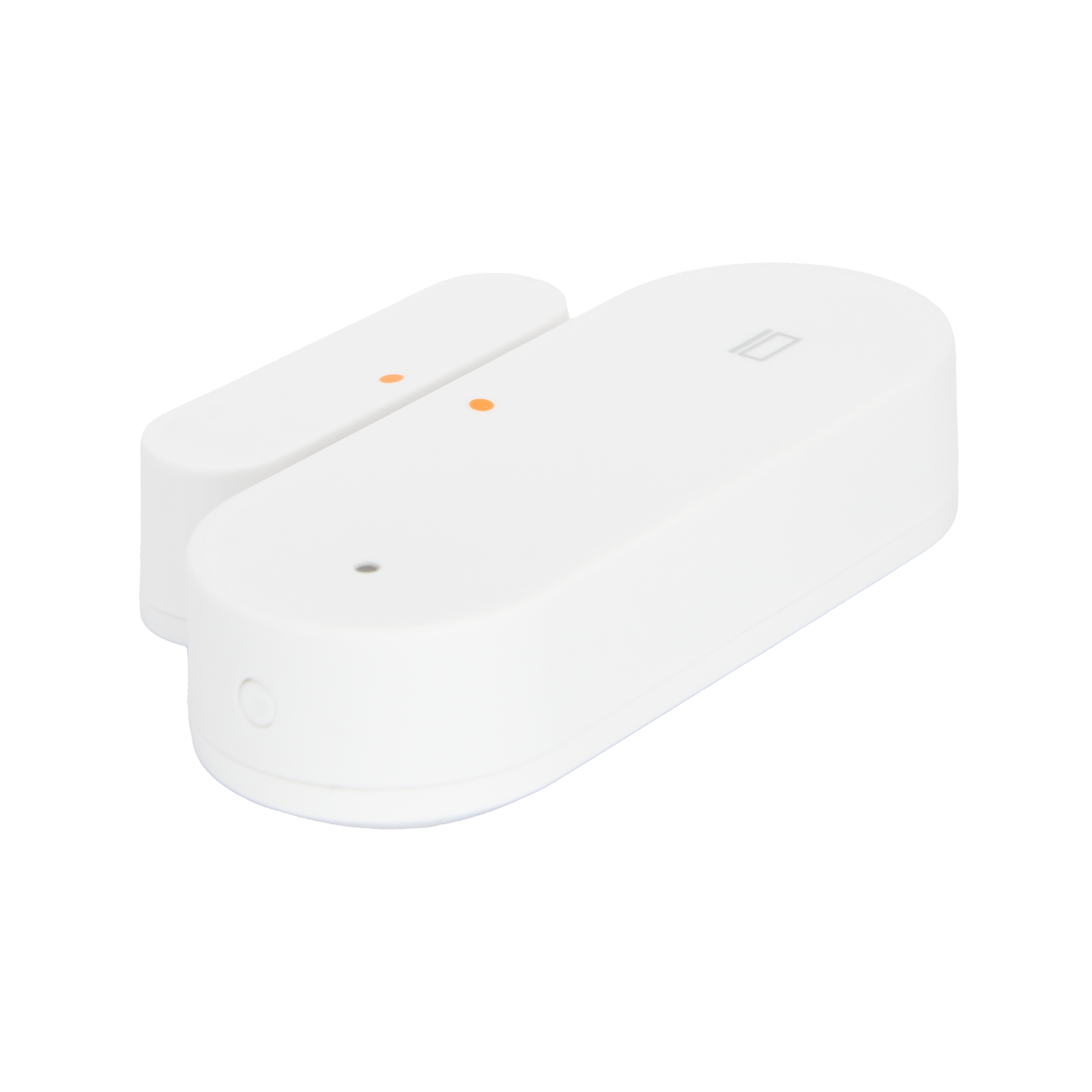

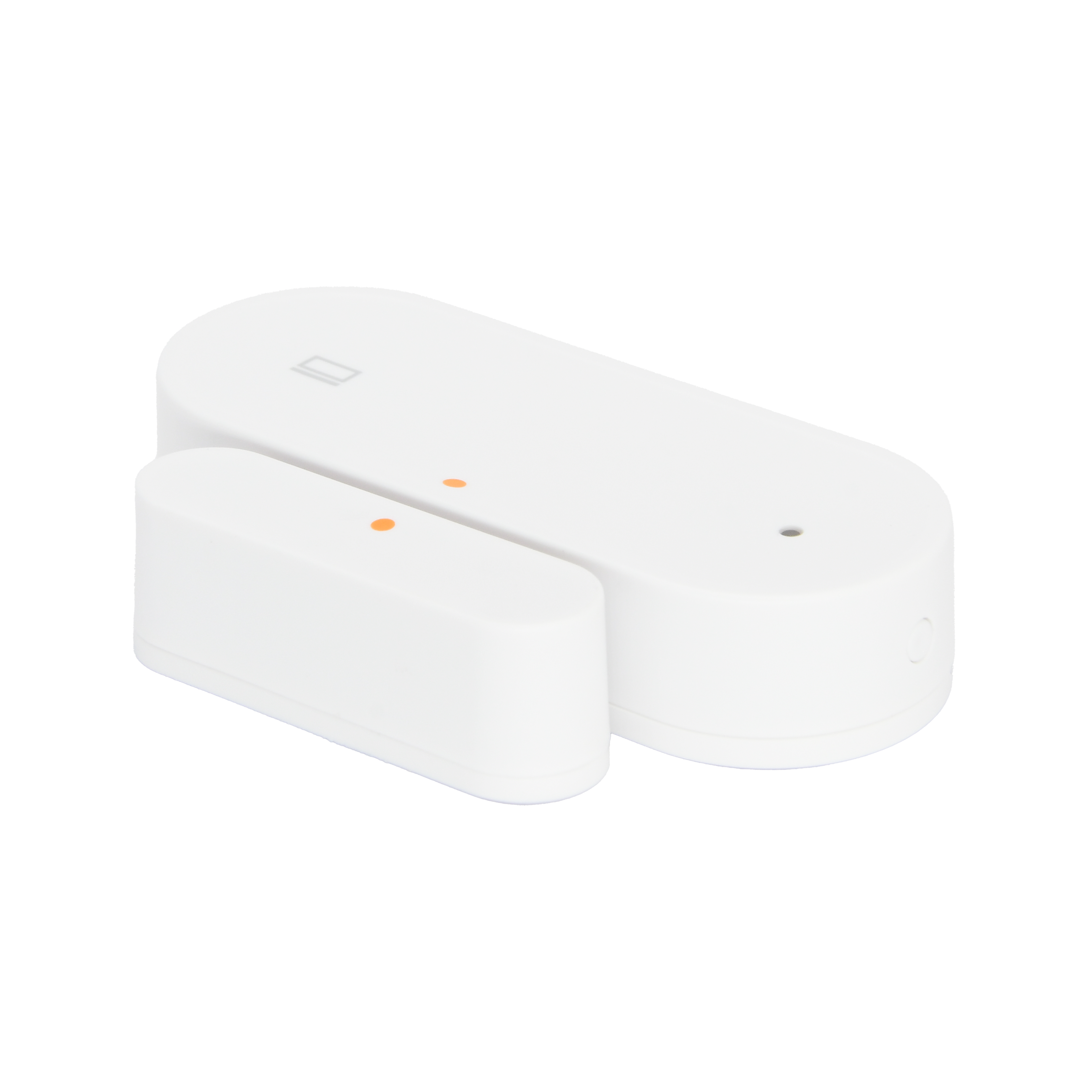

The PIERRE Wave Door/Window sensor is designed for enhanced smart home security, featuring precise monitoring of entry points. The sensor operates on a single CR2032 battery, providing a low-power design that extends battery life up to six months. It uses the PIERRE Wave protocol to ensure stable connectivity and reliable integration within automated home networks. With built-in tamper detection, it actively monitors and alerts users of any potential interference.
Constructed with durable ABS plastic, its compact design allows for quick and secure installation on various door and window types, making it an essential addition to smart home systems.
Print user manual for Entry Sensor
- Status Indicator
- Reset Button
- Main Body
- Magnet
- Tamper Switch
To power on the product you need to follow 3 steps:
- Slide down the rear cover to open it
- Remove the battery insultion film to power on the product
- Press the reset button for 5s and release, the green LED will flash for network setting.
Press the reset button for 5s, the blue LED will flashing, means ready for network setting. This status will keeps on flashing for 20s, if do not connect succeed, please press the reset button for 5s again, make the blue LED flashing then connect it.
Install the product on a door or window with the main body fixed on the door or window frame (please install on wooden door or window), as shown in the following figure.
- Alignment mark
- <10mm
- The installation position is for your reference only. Use a 3M sticker to affix the product.
Note:
- Do not install the product outdoors, on an unstable base, or anywhere unprotected from the rain.
- Do not place magnetic metals or other objects near the product, when pasting and installing, it is necessary to ensure that the surface in contact with the double-sided adhesive is smooth, dry and clean.
Power supply mode
CR2032
Connectivity
Zigbee
Panel material
ABS plastic
Product color
White
Mounting
Wall
LED Indicators
Yes
Low battery indication
Yes
Operating Temperature °C
-10°C - +55°C
Operating Temperature °F
+14°F - +131°F
Operating Humidity % RH
< 95% RH, No Condensation
Detection Technology
Magnetic reed switch
Alarm triggering distance
23.00mm
Safety features
Tamper Protection, Anti-theft, Door status detection
The PIERRE Wave system is a user-friendly solution for integrating and managing smart devices through a central platform. The system consists of the following components:
A - Required Elements:
- PIERRE Wave Products: These smart devices, including lighting, thermostats, sensors, and other appliances, connect wirelessly to the PIERRE Wave Gateway. They provide essential functions and capabilities for the system.
- PIERRE Wave Gateway: The central unit linking all PIERRE Wave devices, the gateway manages communication and data exchange, ensuring security and stability. It supports remote access and control, with the default Berlin display interface, though users can choose any PIERRE display model.
B - Optional Elements:
- Mobile PIERRE App: This app allows users to manage and monitor the system from their smartphone or tablet, offering real-time updates and remote access. It provides convenience but is not necessary for basic system operation.
- Router: An optional component that enables internet connectivity, allowing devices to be accessed and controlled remotely.
- System Operation: The gateway can connect to the router via Wi-Fi or LAN for internet connectivity, enhancing remote management capabilities. PIERRE Wave products communicate wirelessly with the gateway, which acts as the central hub. This bidirectional communication allows data to flow both ways, enabling users to send commands and receive status updates through the Mobile PIERRE App. The app facilitates effective management and real-time feedback on device statuses.
Please scan the QR code to download PIERRE application
Log in with you Username and Password
Open Settings and press "Add Wave I/O"
Press and hold the Reset Key for 5 seconds and the green LED will flash for network setting.
- Sensor
- PIERRE Wave Gateway
Press "Find Devices"
PIERRE application will show the list of available devices. Press "Add found devices"
Enter Name, Role and Group settings and Save it
When the Light indicator stops flashing, the PIERRE Wave pairing process is finished
