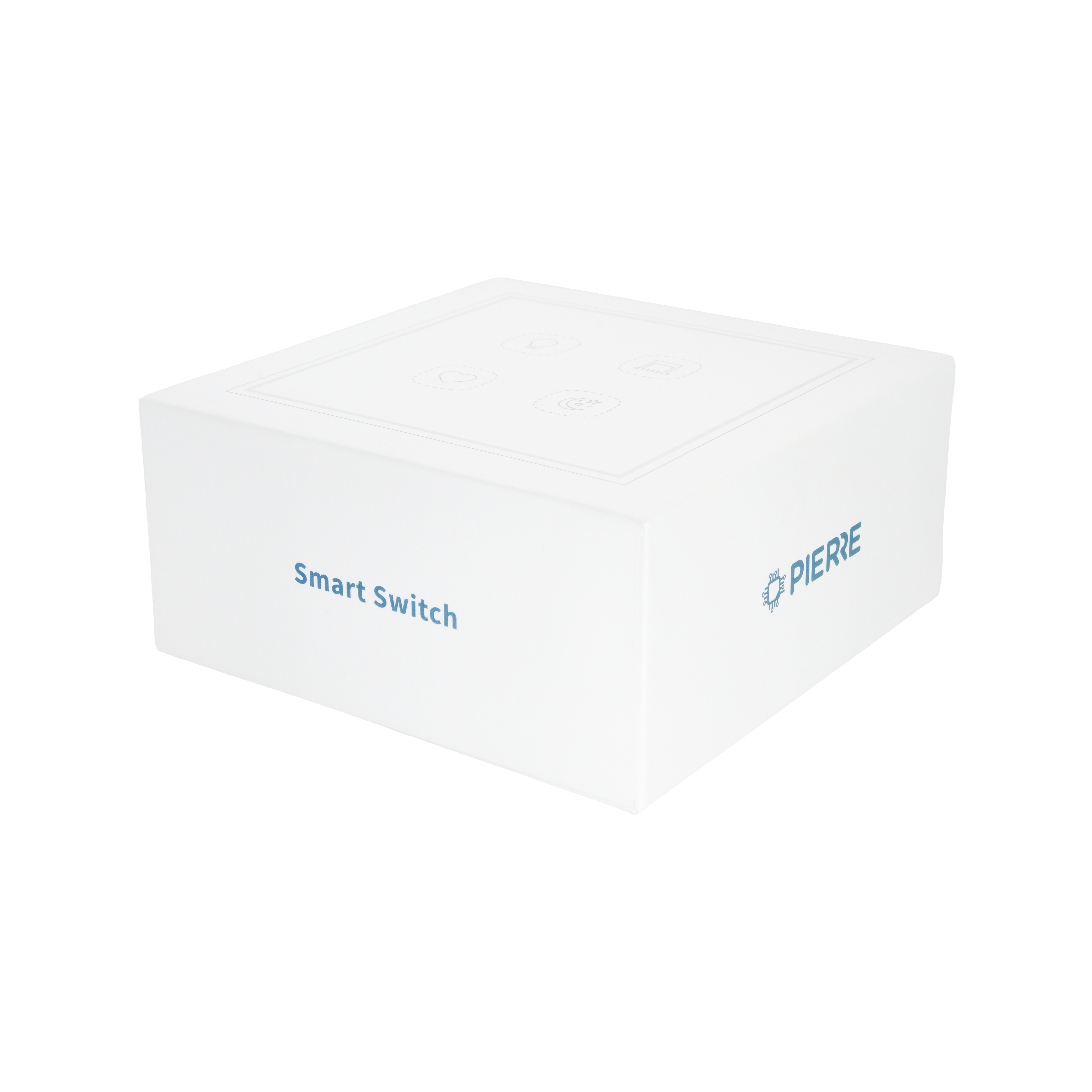

Measurements (box)
Specifications

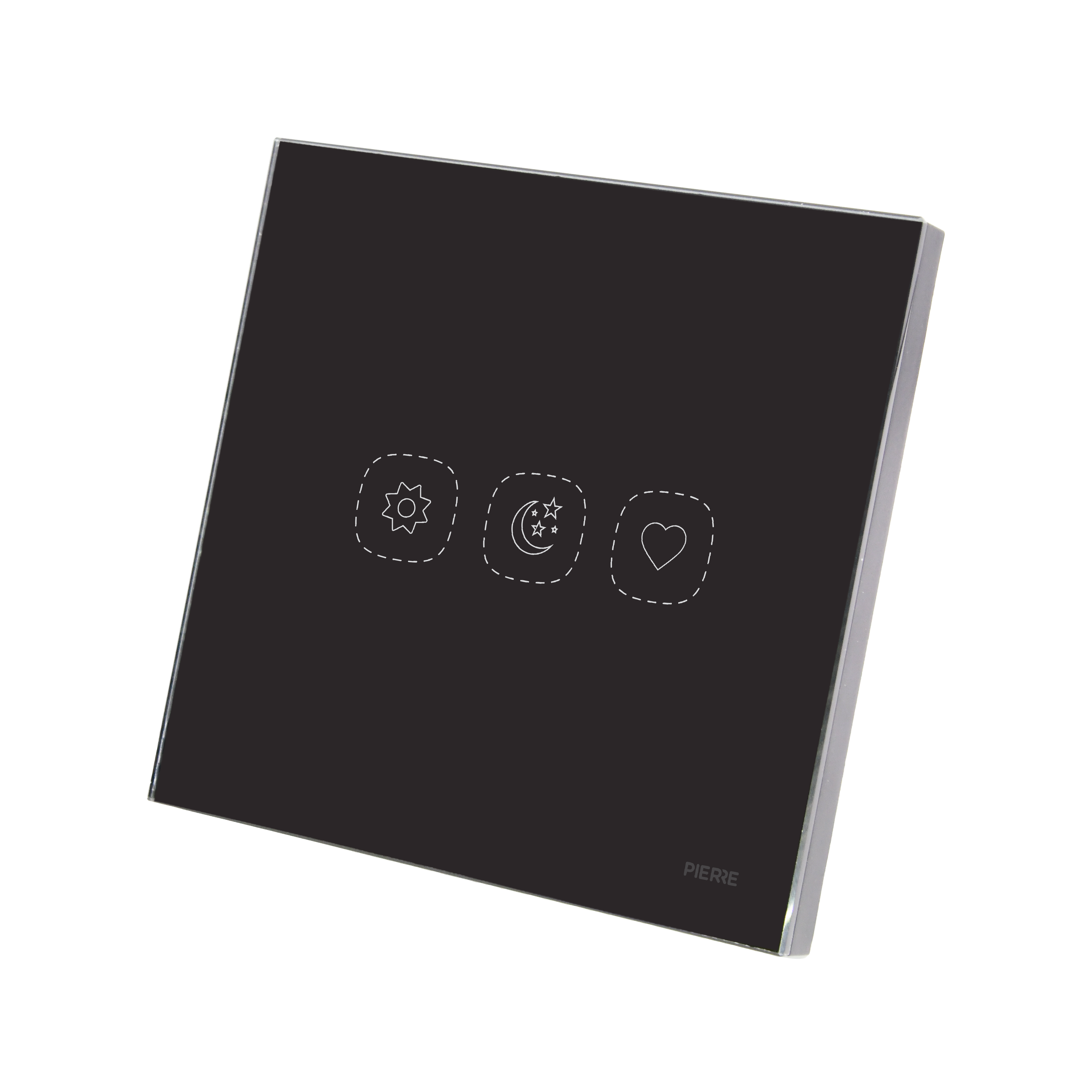

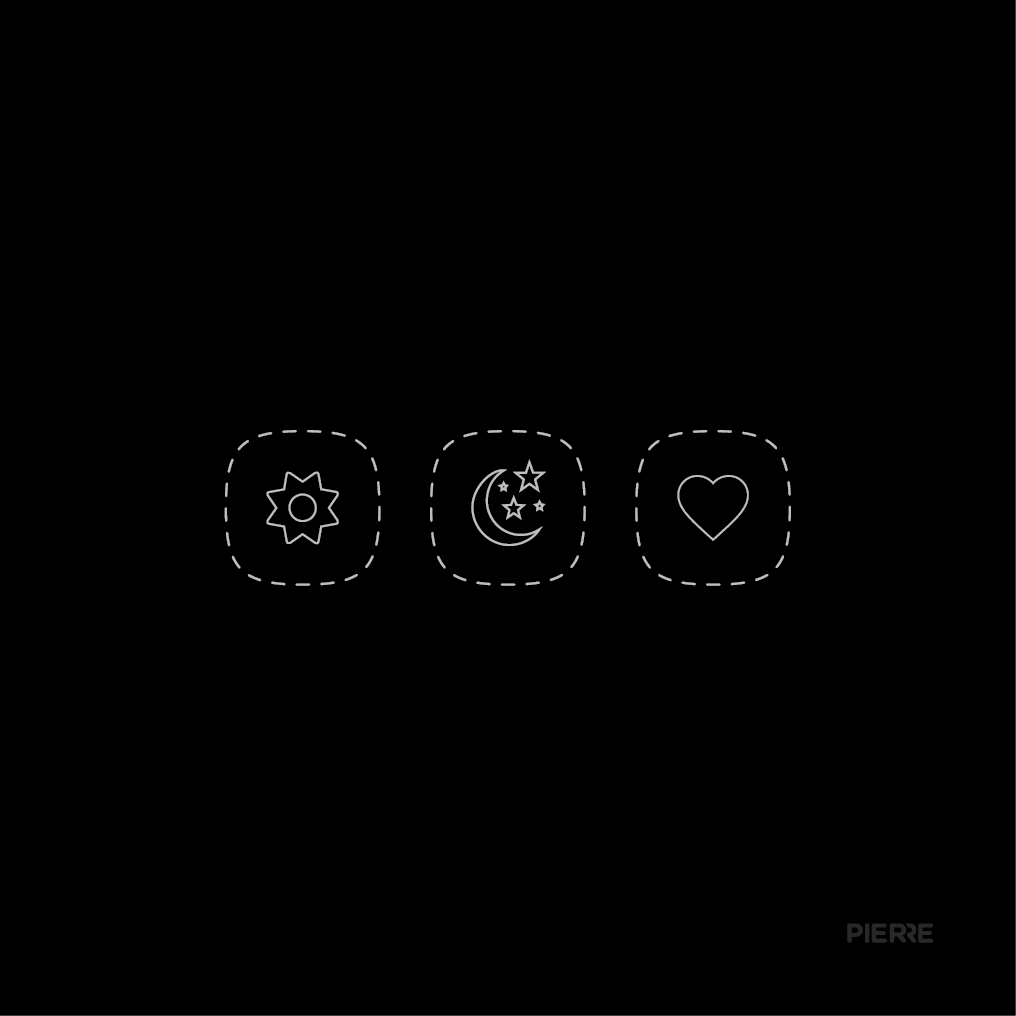

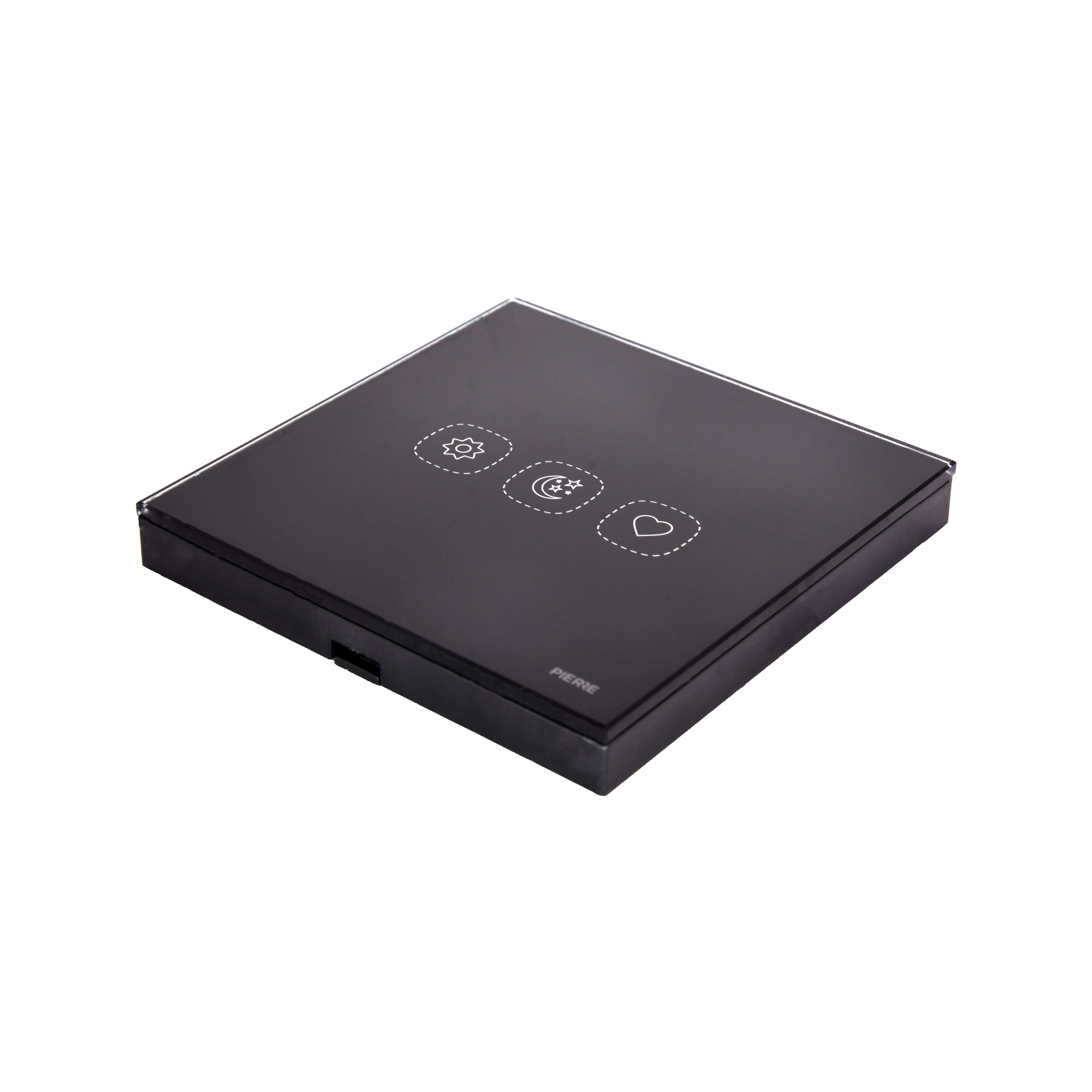

The PIERRE Wave - Flat Series 3 Gang Scene Switch operates on a CR2032 battery, providing a compact, wireless solution for environments where cabling is impractical or undesired. Its three-channel functionality allows independent control of multiple devices or scenes, enabling greater flexibility in complex smart home setups. The tempered glass panel ensures both mechanical durability and a modern finish, meeting the aesthetic and functional requirements of professional installations.
The device leverages PIERRE Wave for low-latency and stable connectivity, with an operational range up to 100 meters in open environments. Designed for reliability, the switch performs consistently in temperature ranges from -10°C to +40°C and relative humidity levels up to 90%. The integration of safety mechanisms, including overload, short-circuit, and static protection, ensures secure operation under demanding conditions. This switch is optimized for energy efficiency, delivering extended performance on a single battery.
Print user manual for Flat Series 3 Gang Wireless Scene Switch - Black (BATT)
Power supply mode
CR2032
Connectivity
Zigbee
Frequency
2.4GHz-2.484GHz
Panel material
Tempered glass
Product color
Black
Mounting
Wall
Number of channels
3 channel
LED Indicators
Yes
Operating Temperature °C
-10°C - +40°C
Operating Temperature °F
+14°F - +104°F
Operating Humidity % RH
10% - 90% RH
Safety features
Overload, Over Voltage, Short Circuit, Thermal Protection, Static Protection, Surge Protection
Wiring
Not required (wireless)

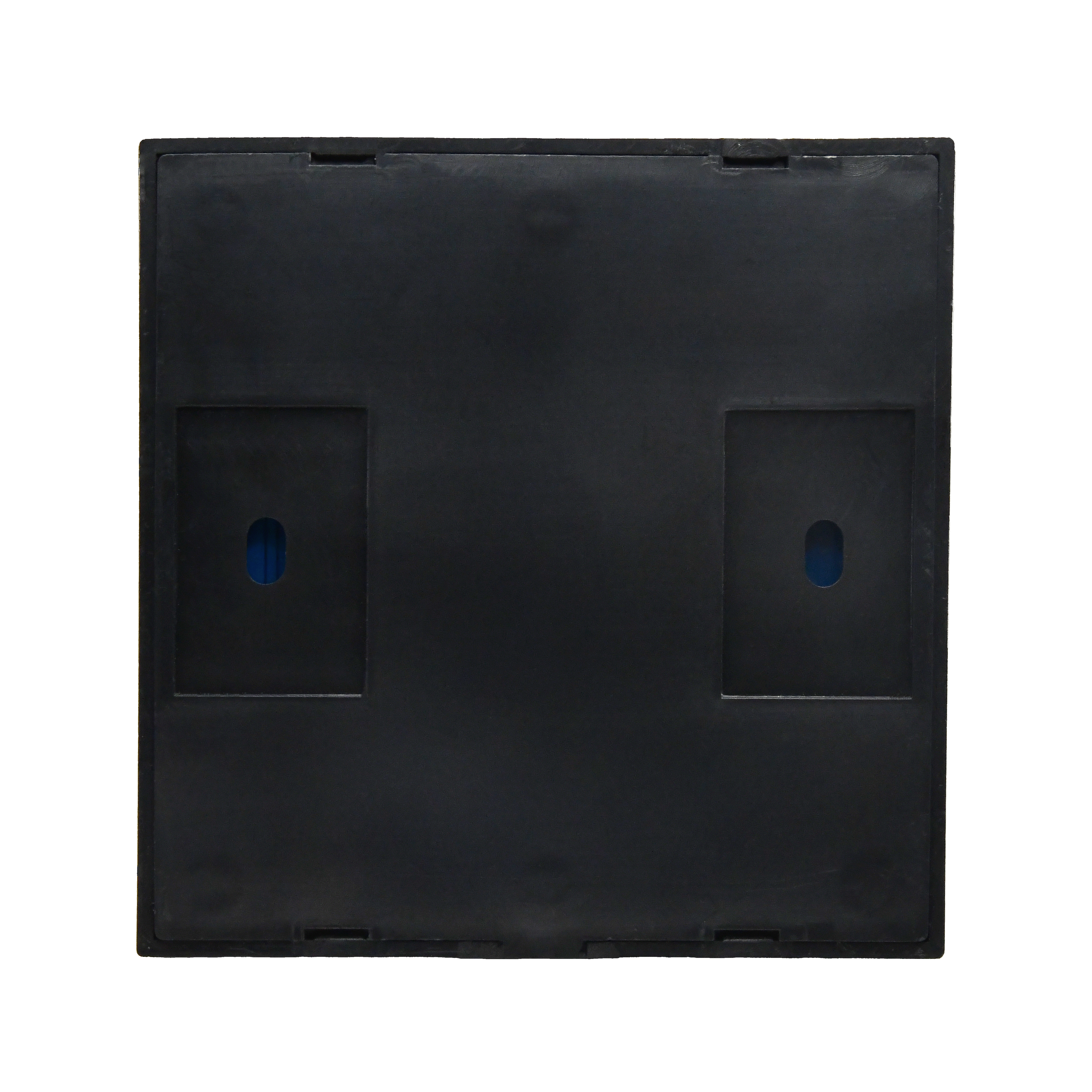

Mounting Box
Not applicable (adhesive or screw mount)
Bolt Hole Distance
Not applicable
The PIERRE Wave system is a user-friendly solution for integrating and managing smart devices through a central platform. The system consists of the following components:
A - Required Elements:
- PIERRE Wave Products: These smart devices, including lighting, thermostats, sensors, and other appliances, connect wirelessly to the PIERRE Wave Gateway. They provide essential functions and capabilities for the system.
- PIERRE Wave Gateway: The central unit linking all PIERRE Wave devices, the gateway manages communication and data exchange, ensuring security and stability. It supports remote access and control, with the default Berlin display interface, though users can choose any PIERRE display model.
B - Optional Elements:
- Mobile PIERRE App: This app allows users to manage and monitor the system from their smartphone or tablet, offering real-time updates and remote access. It provides convenience but is not necessary for basic system operation.
- Router: An optional component that enables internet connectivity, allowing devices to be accessed and controlled remotely.
- System Operation: The gateway can connect to the router via Wi-Fi or LAN for internet connectivity, enhancing remote management capabilities. PIERRE Wave products communicate wirelessly with the gateway, which acts as the central hub. This bidirectional communication allows data to flow both ways, enabling users to send commands and receive status updates through the Mobile PIERRE App. The app facilitates effective management and real-time feedback on device statuses.
Please scan the QR code to download PIERRE application
Log in with you Username and Password
Open Settings and press "Add Wave I/O"
Press and hold the Reset Key for 10 seconds (use a small, thin object like a paperclip) until the Indicator Light starts flashing
- Indicator Light
- Reset Key
- PIERRE Wave Gateway
Press "Find Devices"
PIERRE application will show the list of available devices. Press "Add found devices"
Enter Name, Role and Group settings and Save it
When the Light indicator stops flashing, the PIERRE Wave pairing process is finished
