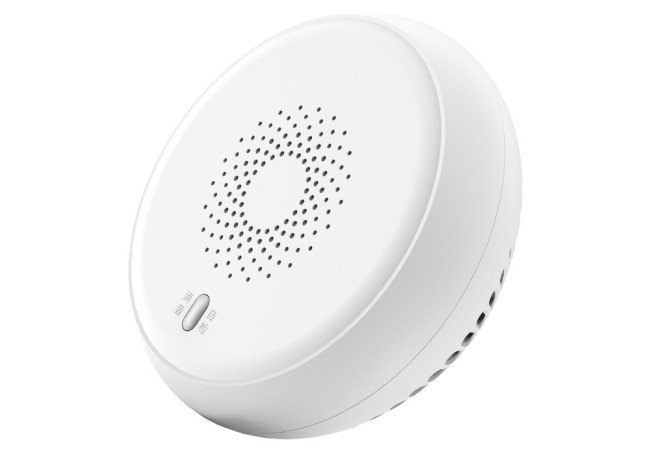

The PIERRE Wave Smoke Detector provides accurate and early smoke detection, using photoelectric sensing technology to quickly identify fire hazards. It connects to the PIERRE Wave smart home system, ensuring users receive instant alerts via connected devices. With a sleek and compact design, it is easy to install on ceilings or walls. The detector operates on a DC power supply, supporting continuous monitoring, and features an audible alarm for immediate local notification. It is designed to function effectively within a temperature range suitable for various environments, adding an essential layer of safety.
Print user manual for Smoke Detector
Power supply mode
CR123A
Connectivity
Zigbee
Panel material
ABS+PC material
Product color
White
Operation range
100m
Built-in Sensors
Smoke
Operating Temperature °C
-10°C - +55°C
Operating Temperature °F
+14°F - +131°F
Alarm Sound
>85 dB (at 3 meters)
The PIERRE Wave system is a user-friendly solution for integrating and managing smart devices through a central platform. The system consists of the following components:
A - Required Elements:
- PIERRE Wave Products: These smart devices, including lighting, thermostats, sensors, and other appliances, connect wirelessly to the PIERRE Wave Gateway. They provide essential functions and capabilities for the system.
- PIERRE Wave Gateway: The central unit linking all PIERRE Wave devices, the gateway manages communication and data exchange, ensuring security and stability. It supports remote access and control, with the default Berlin display interface, though users can choose any PIERRE display model.
B - Optional Elements:
- Mobile PIERRE App: This app allows users to manage and monitor the system from their smartphone or tablet, offering real-time updates and remote access. It provides convenience but is not necessary for basic system operation.
- Router: An optional component that enables internet connectivity, allowing devices to be accessed and controlled remotely.
- System Operation: The gateway can connect to the router via Wi-Fi or LAN for internet connectivity, enhancing remote management capabilities. PIERRE Wave products communicate wirelessly with the gateway, which acts as the central hub. This bidirectional communication allows data to flow both ways, enabling users to send commands and receive status updates through the Mobile PIERRE App. The app facilitates effective management and real-time feedback on device statuses.
Please scan the QR code to download PIERRE application
Log in with you Username and Password
Open Settings and press "Add Wave I/O"
Press and hold the Reset Key for 10 seconds (use a small, thin object like a paperclip) until the Indicator Light starts flashing
- Indicator Light
- Reset Key
- PIERRE Wave Gateway
Press "Find Devices"
PIERRE application will show the list of available devices. Press "Add found devices"
Enter Name, Role and Group settings and Save it
When the Light indicator stops flashing, the PIERRE Wave pairing process is finished
