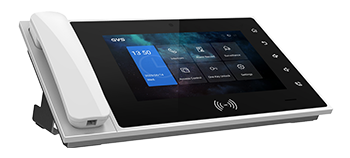

The PIERRE Receptionist Device offers precise and reliable control through its 10.1-inch capacitive touch display. The device operates on 24V/48V PoE, featuring robust protection against overvoltage and polarity issues, ensuring electrical safety and durability.
Its TCP/IP interface allows seamless integration with large-scale building management systems, supporting access control, real-time monitoring, and communication between multiple stations. Remote unlocking and continuous monitoring are integrated into the system for maximum security, making it suitable for complex installations. Operating in a wide temperature range from -10°C to +55°C, this device is designed for both residential and industrial environments.
Print user manual for The Receptionist Device
W: 35,5 cm
H: 20.9 cm
D: 10.5 cm
- Home Button
- Returns to the main screen or home interface.
- Back/Return Button
- Goes back to the previous screen or exits the current menu.
- Volume Down
- Decreases the speaker volume of the indoor unit.
- Volume Up
- Increases the speaker volume.
- Unlock Button
- Opens the door or gate connected to the system (sends unlock signal).
- RS-485 Communication Port (RJ45 Type)
This port is used for RS-485 data communication, typically to connect:
- Other indoor units
- Outdoor panels
- Central control systems
Pin labels:
- RX-, RX+ – Receive data (RS-485)
- TX-, TX+ – Transmit data (RS-485)
- Power Input Port (DC Jack)
This is the DC power input socket for the device.
- Center pin: Positive (+)
- Outer sleeve: Negative (–)
Usually requires a 24V DC power supply (check device specs to confirm).
Power supply mode
DC 24V / PoE 48V
Consumption
1.80W
Over Voltage Range
12V DC - 15V DC
Current
0.40A
Static current
≤210mA
Working current
<400mA (DC24V)
Connectivity
10M/100M Ethernet RJ45
Panel material
ABS+PC material
Product color
White
Touch Screen Dimension
10.00"
Touch Screen Resolution
800 x 1280
LED Indicators
Yes
Operating Temperature °C
-10℃ ~ +55℃
Operating Temperature °F
+14°F - +131°F
Operating Humidity % RH
10% - 95% RH, Non condensing
Safety features
Over Voltage, Reverse polarity, Password Authentication, Factory Reset Option
IP rating
IP20
Ring Duration
30 seconds
Call Duration
120 seconds
Monitor Duration
30 seconds
Administrator Password
Emergency unlocking (Default: 666666)
Engineering Password
Unit coding, factory reset (Default: 801801)
Card Management
Register, check, delete, and clear user cards
