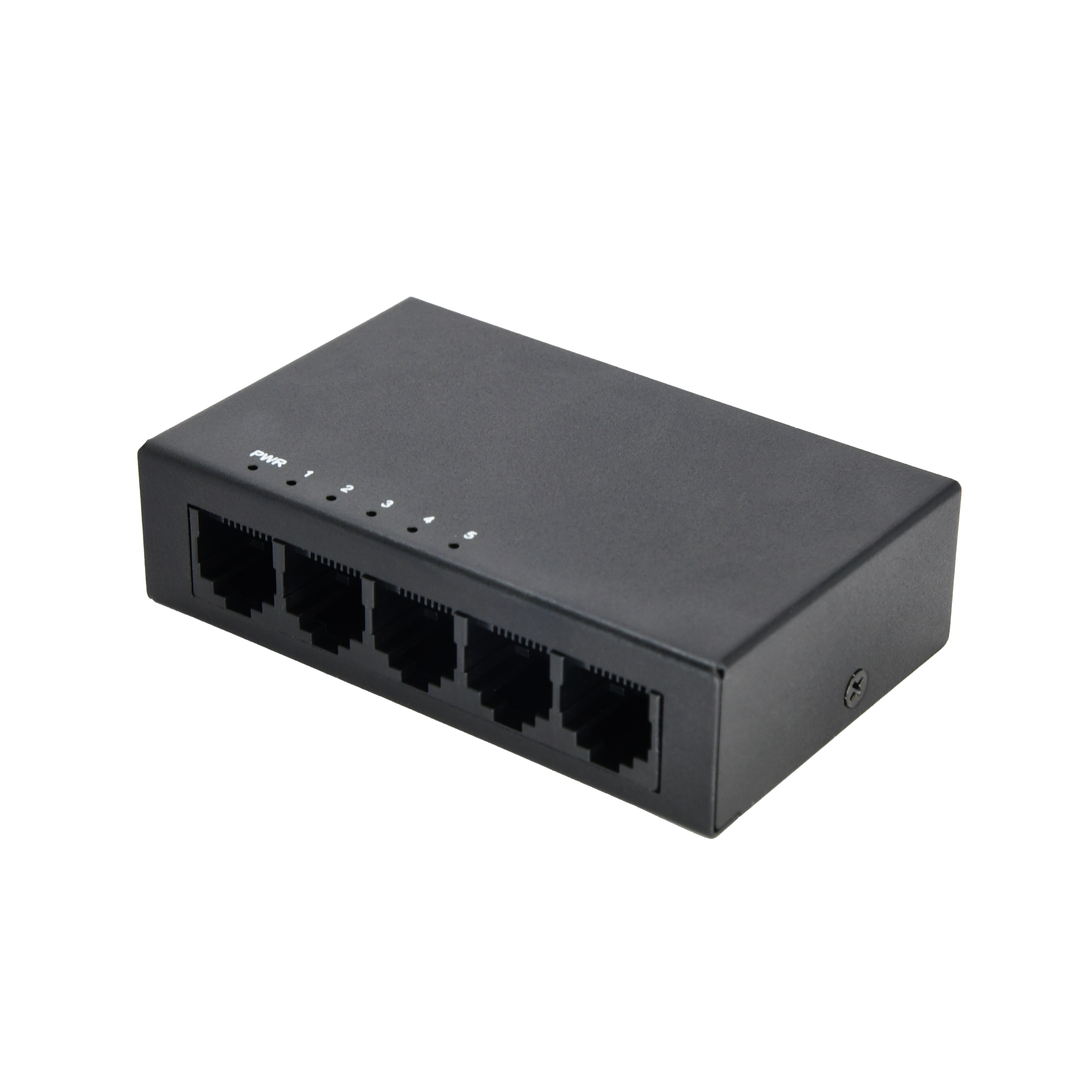

The PIERRE Pro Network 5 Port Switch features 5 gigabit ports with 10/100/1000Mbps data rates and full/half-duplex communication. It uses a DC 5V 1A power input, ensuring efficient power distribution to connected devices. With a 10Gbps switching capacity and store-and-forward technology, the switch minimizes latency and ensures reliable data transmission even under heavy network traffic.
The compact and durable metal housing is ideal for installation on flat surfaces in space-limited environments. Its fanless design ensures quiet operation, making it suitable for both home and industrial applications. The switch also includes LED indicators for real-time monitoring of network activity, enhancing troubleshooting and performance optimization.
The power cable and adapter are included.
Print user manual for Network 5 Port Switch
Power supply mode
DC 5V 1A
Inrush Current
10A Max
Connectivity
10M/100M/1000M Ethernet RJ45
Panel material
Metal
Product color
Black
Mounting
Desktop
Network Protocols
IEEE 802.3u
Transfer Mode
Store & Forward
Communication Mode
Full-Duplex, Half-Duplex
LED Indicators
Yes
Power over Ethernet (PoE)
No
Ports
5 x 10/100/1000Mbps RJ45 ports
Switch Capacity
10Gbps
Operating Temperature °C
0°C - +40°C
Operating Temperature °F
+32°F - +104°F
Operating Humidity % RH
10% - 90% RH Non condensing
Safety features
Overload, Over Voltage, Short Circuit, Thermal Protection, Surge Protection
IP rating
IP30
