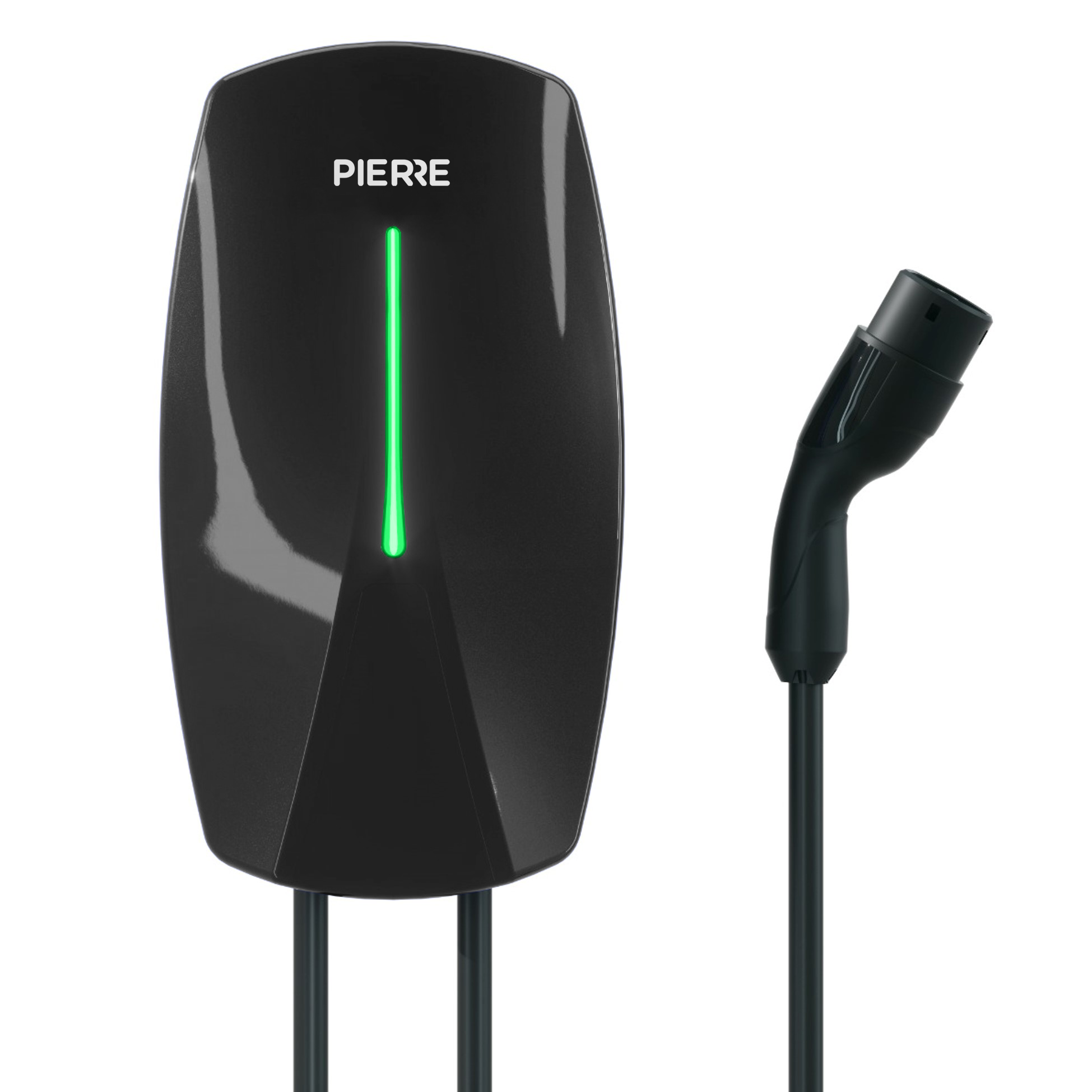

The EV Charger 16A, AC charger is a wall-mounted unit designed for 400 V three-phase systems with a maximum output of 11 kW (16 A per phase). Charging current can be configured between 6 A and 16 A, either statically or via dynamic load balancing. The charger supports multiple user access modes, including RFID authentication, app-based control (Bluetooth, Wi-Fi), Ethernet, and plug-and-charge functionality. It conforms to OCPP 1.6 and allows for system-level integration into backend platforms or energy management systems.
The unit incorporates comprehensive electrical protection: overcurrent, undervoltage, overvoltage, short circuit, ground fault, overtemperature, and 6 mA DC leakage detection. It is housed in an IP65-rated enclosure suitable for outdoor installation. Operating temperature range is –30 °C to +50 °C, with up to 95% RH tolerance (non-condensing). The charger is delivered with a 5 m, 7 m, or 10 m fixed cable (GB/T or Type 2), depending on specification.
