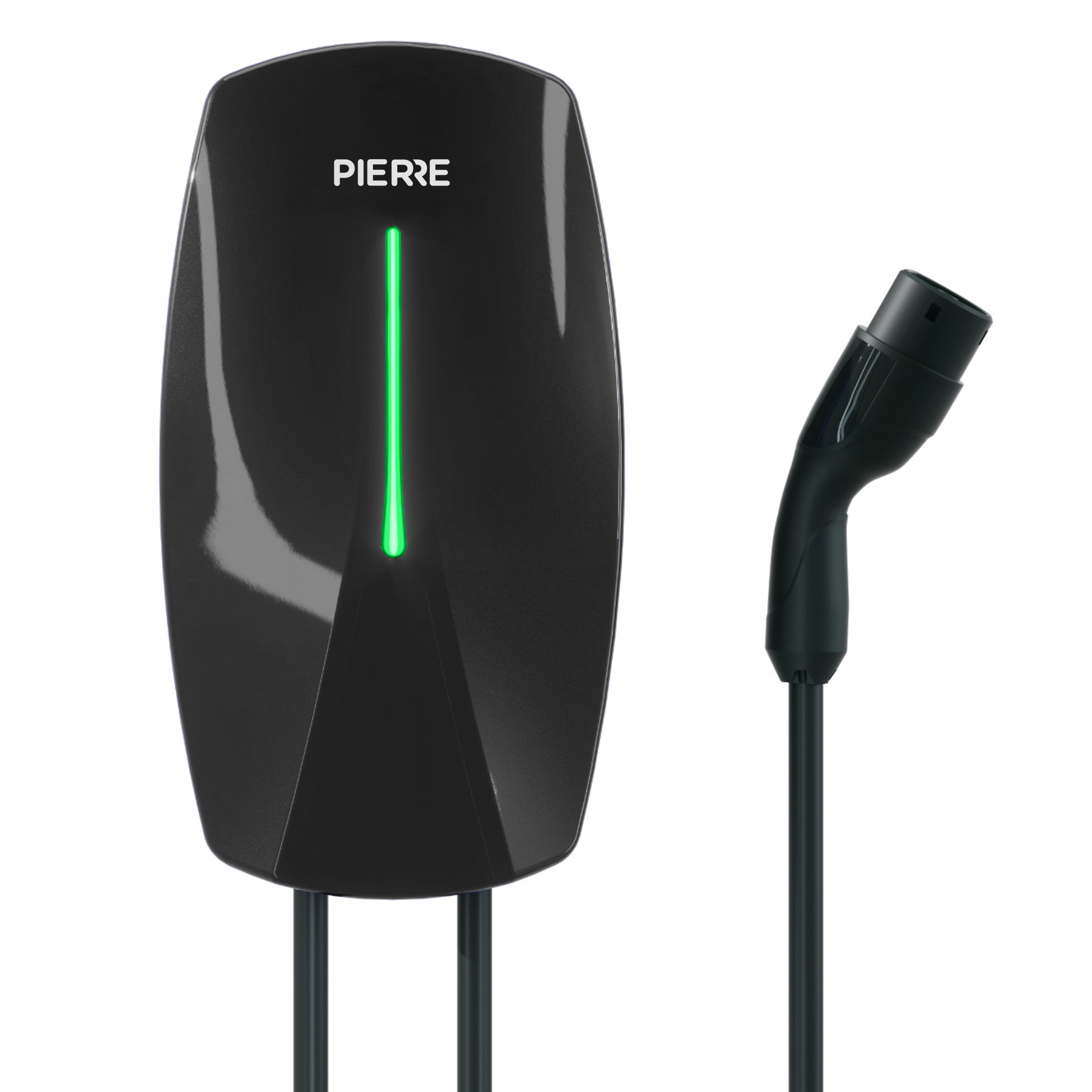

The EV Charger 32A is a wall-mounted, 400 V three-phase EV charger with adjustable output current from 6 A to 32 A and a maximum rated power of 22 kW. It supports various user authentication modes, including RFID, plug-and-charge, Bluetooth, Wi-Fi, and Ethernet. OCPP 1.6 compliance allows backend integration for remote access, billing, and control; support for OCPP 2.0 is available depending on configuration.
Electrical protection includes overcurrent, undervoltage, surge, ground fault, short circuit, overtemperature, and DC leakage (6 mA). The charger is housed in an IP65-rated enclosure for outdoor or indoor use, and operates reliably between –30 °C and +50 °C with up to 95% relative humidity. GB/T or Type 2 connector variants are available with fixed cables in 5 m, 7 m, or 10 m lengths, making the unit suitable for private, fleet, or semi-public charging infrastructure.
