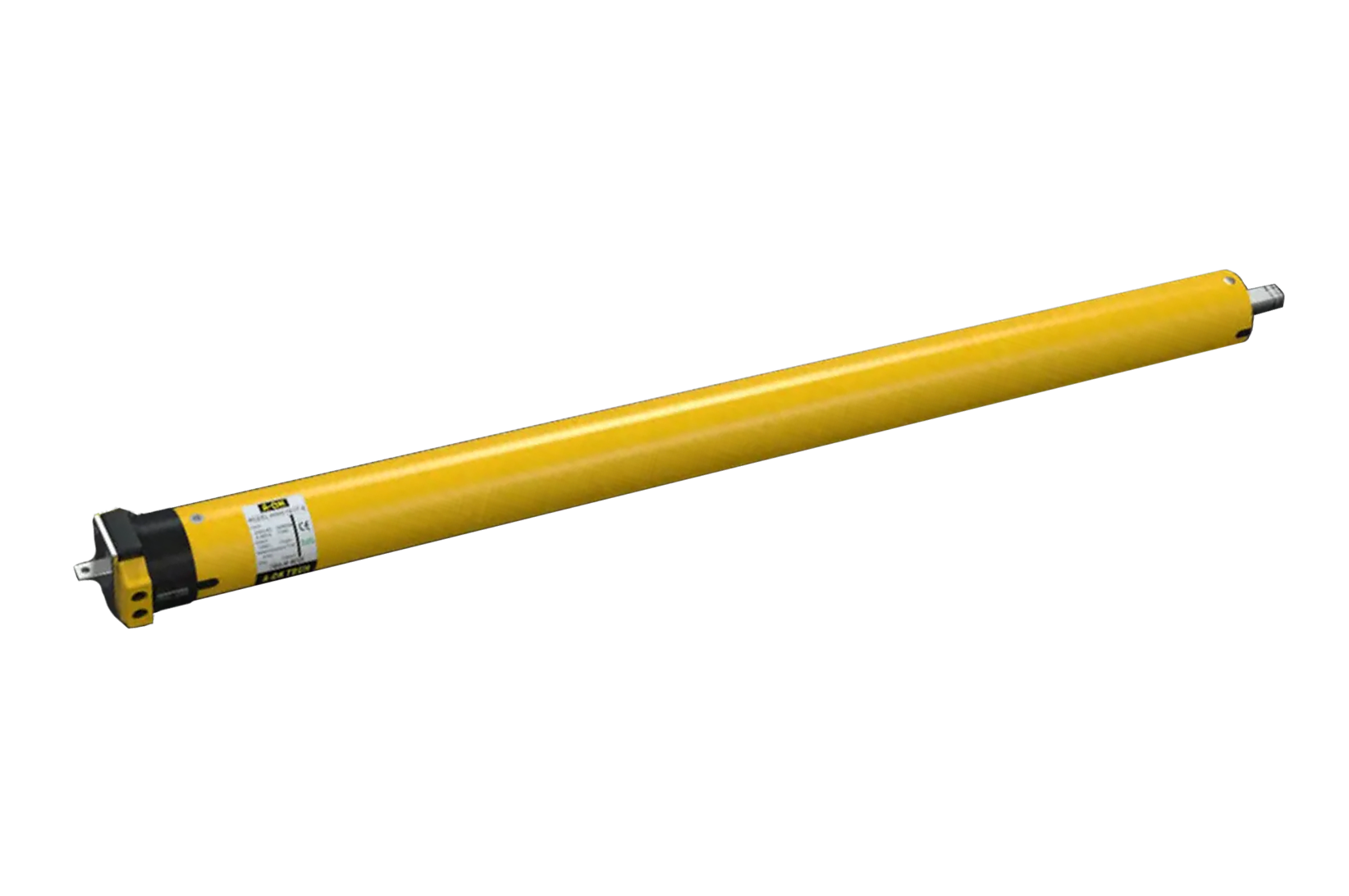

The Electric Blind motor AM35 6/28 is a 35 mm diameter tubular motor designed for integration into automated shading systems such as roller blinds, projection screens, and textile-based covers. Operating on 230 V AC, it delivers a nominal torque of 6 N·m at a rotational speed of 28 rpm with 115 W rated power. The unit includes an electronic limit switch system, enabling precise upper and lower stop positions to be configured via remote control without mechanical adjustment.
The motor features helical gear transmission, reducing operational noise to approximately 30 dB, and includes built-in thermal overload protection activating at 145 °C. It supports obstacle detection with automatic reversal to protect both the system and end user. The unit is compatible with A-OK's RF control systems (433.92 MHz), and carries an IP44 ingress protection rating, making it suitable for indoor environments where reliable operation and low acoustic impact are required.
