Product specifications
Measurements

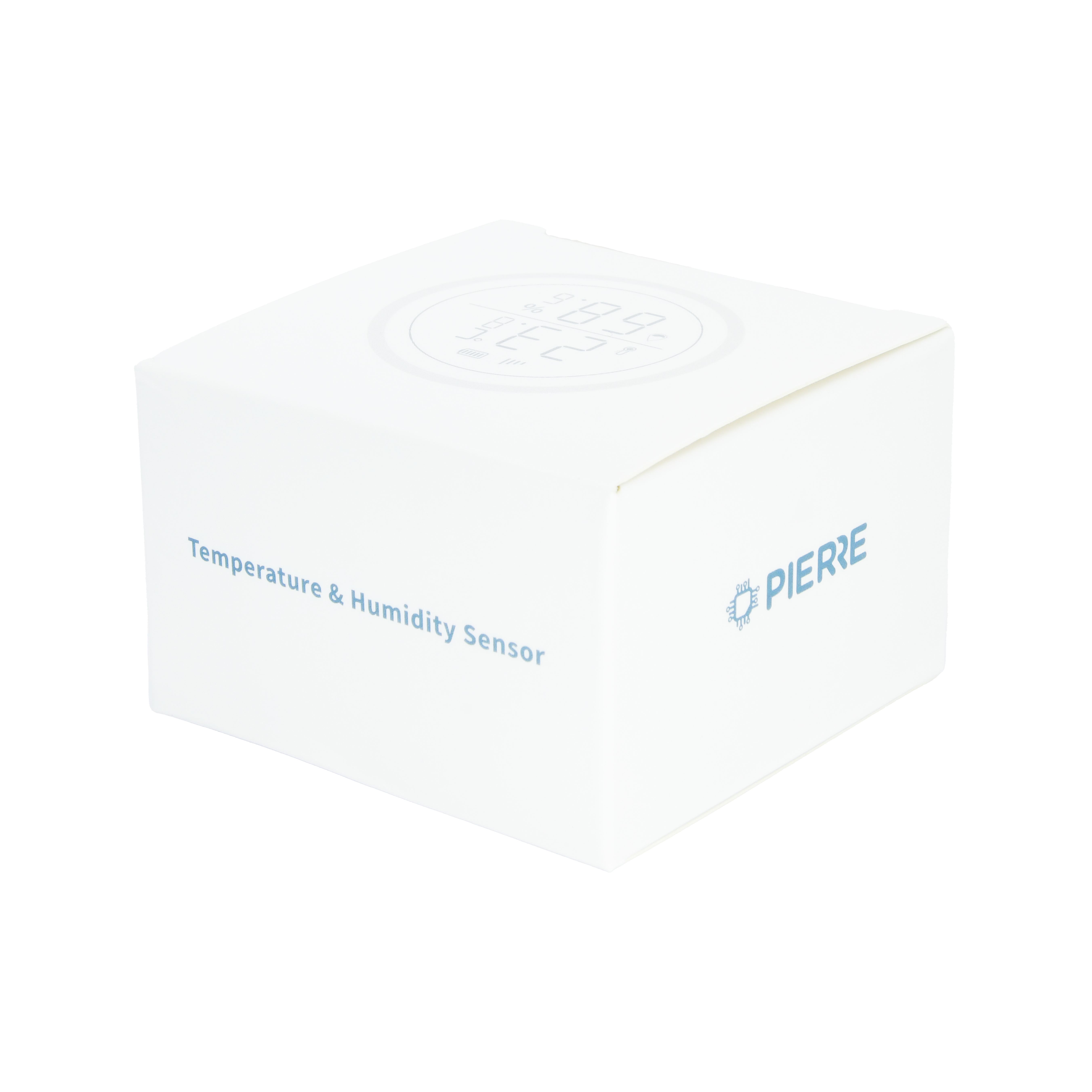

Measurements (box)
Specifications

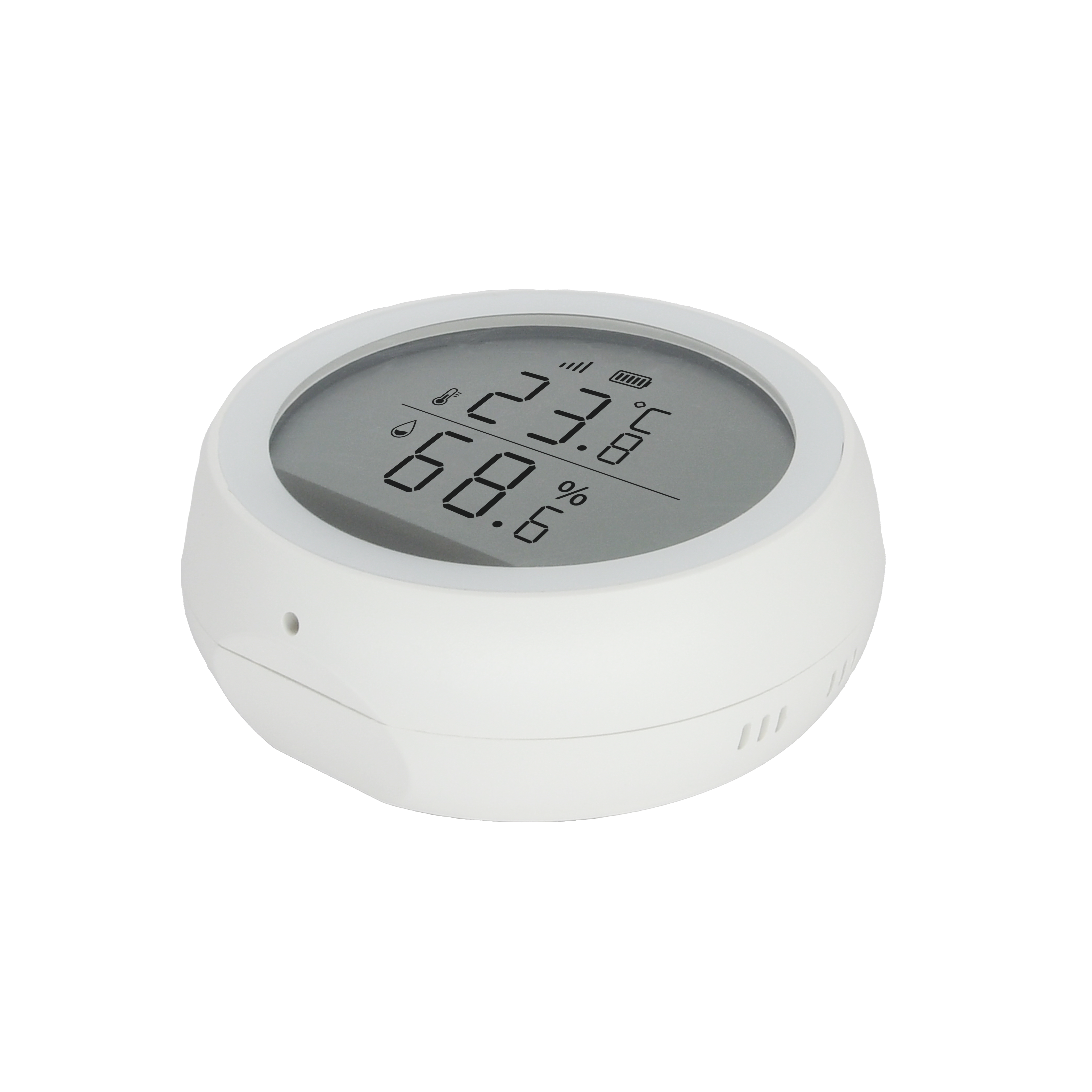

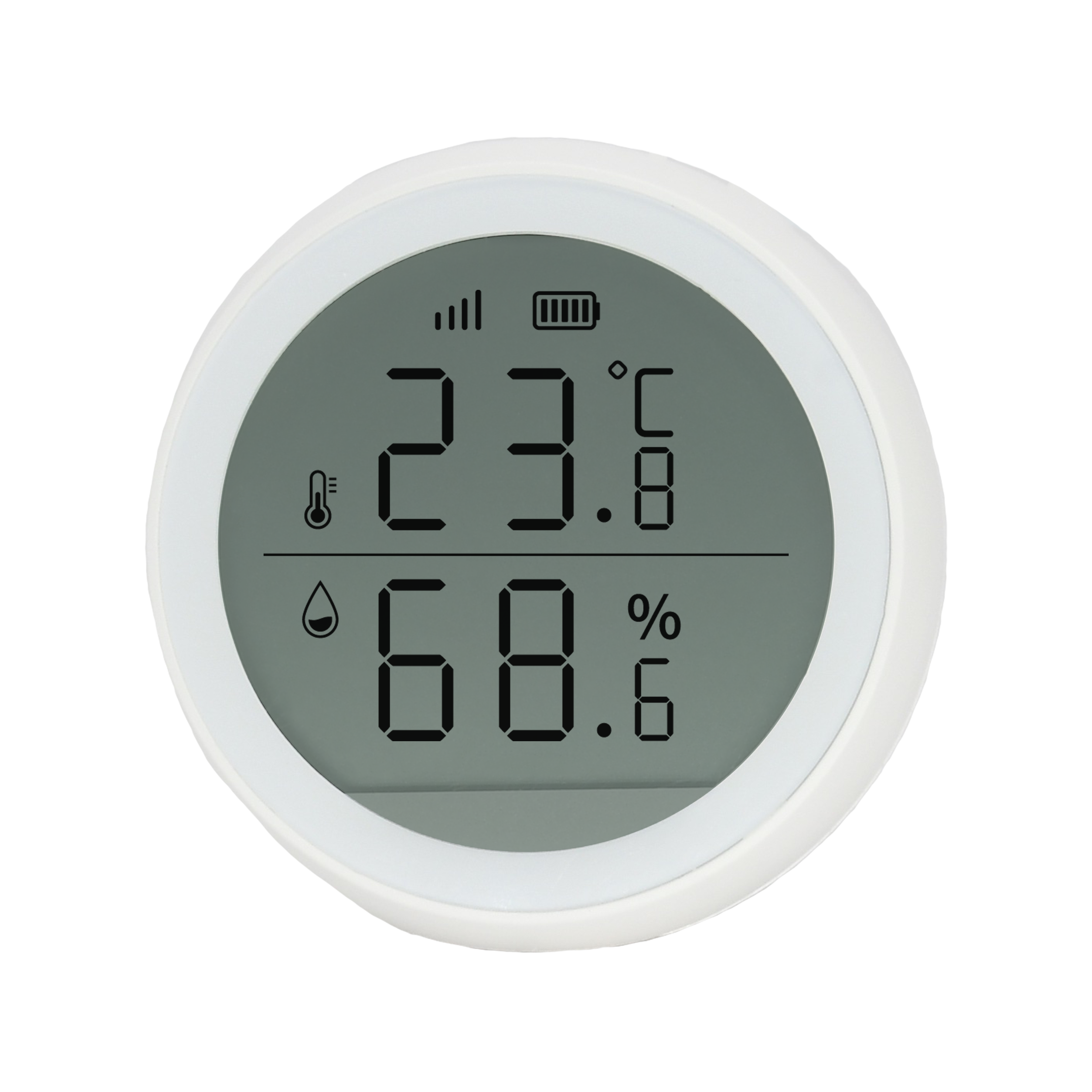

The PIERRE Wave Temperature and Humidity Sensor with Display combines functionality and ease of use, offering precise environmental monitoring. Powered by three AAA batteries, it ensures extended operation with minimal energy consumption. The device features a built-in display for instant access to temperature and humidity levels, while also allowing remote access via mobile app.
Utilizing advanced PIERRE Wave communication and encoding technology, it reduces signal interference and ensures reliable data transmission within smart home systems. The sensor’s ABS/PC casing provides durability, and its compact design allows for unobtrusive placement in various indoor environments.
Print user manual for Temperature and Humidity Sensor (with Display)
- W: 61 mm
- H: 61 mm
- D: 27 mm
- Wireless Signal
- Humidity
- Battery level
- Temperature
- Reset Button
- Battery slots

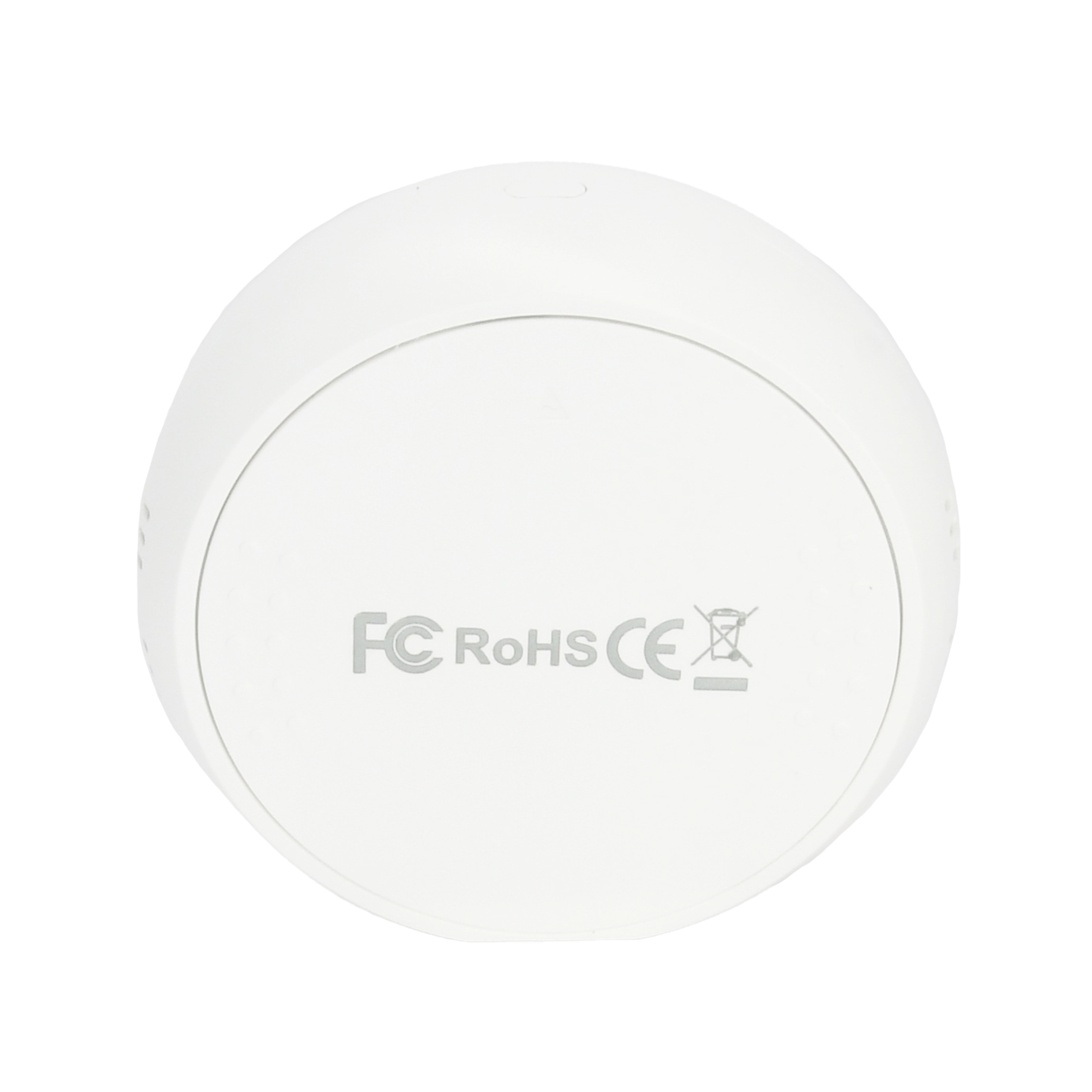

- Battery Cover
- Support
- 3M Sticker
- Reset Button
- USB interface
- Vent
Power supply mode
DC 3 V
Connectivity
Zigbee
Panel material
ABS+PC material
Product color
White
Low battery indication
Yes
Built-in Sensors
Temperature, Humidity
Operating Temperature °C
+10°C - +50°C
Operating Temperature °F
+32°F - +104°F
Operating Humidity % RH
0% - 99% RH
Safety features
Battery low cut off, Thermal Protection, Anti-Flammable Housing, Static Protection, Surge Protection
- Rotate the battery cover counterclockwise to open it.
- Insert two AAA batteries.
- Click the button once to switch between °C/°F, and double-click the button to immediately update the temperature and humidity data.
There are two methods for installation:
- Attach the product to the target position using a 3M adhesive sticker.
- Place the product on the table.
The PIERRE Wave system is a user-friendly solution for integrating and managing smart devices through a central platform. The system consists of the following components:
A - Required Elements:
- PIERRE Wave Products: These smart devices, including lighting, thermostats, sensors, and other appliances, connect wirelessly to the PIERRE Wave Gateway. They provide essential functions and capabilities for the system.
- PIERRE Wave Gateway: The central unit linking all PIERRE Wave devices, the gateway manages communication and data exchange, ensuring security and stability. It supports remote access and control, with the default Berlin display interface, though users can choose any PIERRE display model.
B - Optional Elements:
- Mobile PIERRE App: This app allows users to manage and monitor the system from their smartphone or tablet, offering real-time updates and remote access. It provides convenience but is not necessary for basic system operation.
- Router: An optional component that enables internet connectivity, allowing devices to be accessed and controlled remotely.
- System Operation: The gateway can connect to the router via Wi-Fi or LAN for internet connectivity, enhancing remote management capabilities. PIERRE Wave products communicate wirelessly with the gateway, which acts as the central hub. This bidirectional communication allows data to flow both ways, enabling users to send commands and receive status updates through the Mobile PIERRE App. The app facilitates effective management and real-time feedback on device statuses.
Please scan the QR code to download PIERRE application
Log in with you Username and Password
Open Settings and press "Add Wave I/O"
Press and hold the Reset Key for 10 seconds (use a small, thin object like a paperclip) until the Indicator Light starts flashing
- Reset but on Temperature sensor
- PIERRE Wave Gateway
Network Configuration Instructions:
- Press and hold the button for 5 to 10 seconds. Once the signal icon flashes rapidly, release the button to initiate the network configuration. The configuration process will last for 20 seconds, during which the signal icon will continue flashing. If the button is pressed for more than 10 seconds, the network configuration will be canceled.
- The signal icon will remain visible to indicate that the network configuration has been successfully completed. If the configuration fails, the signal icon will disappear.
Press "Find Devices"
PIERRE application will show the list of available devices. Press "Add found devices"
Enter Name, Role and Group settings and Save it
When the Light indicator stops flashing, the PIERRE Wave pairing process is finished
