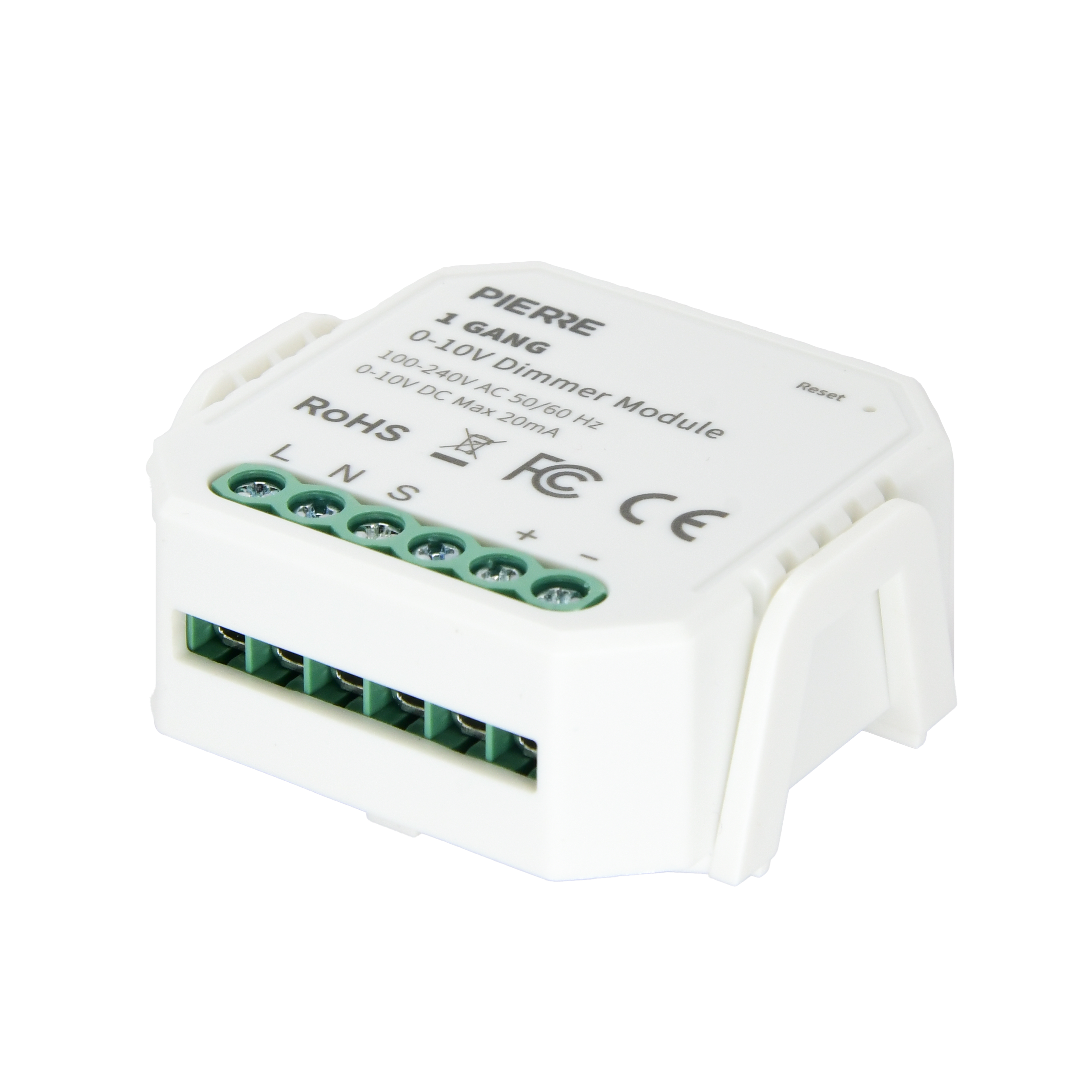

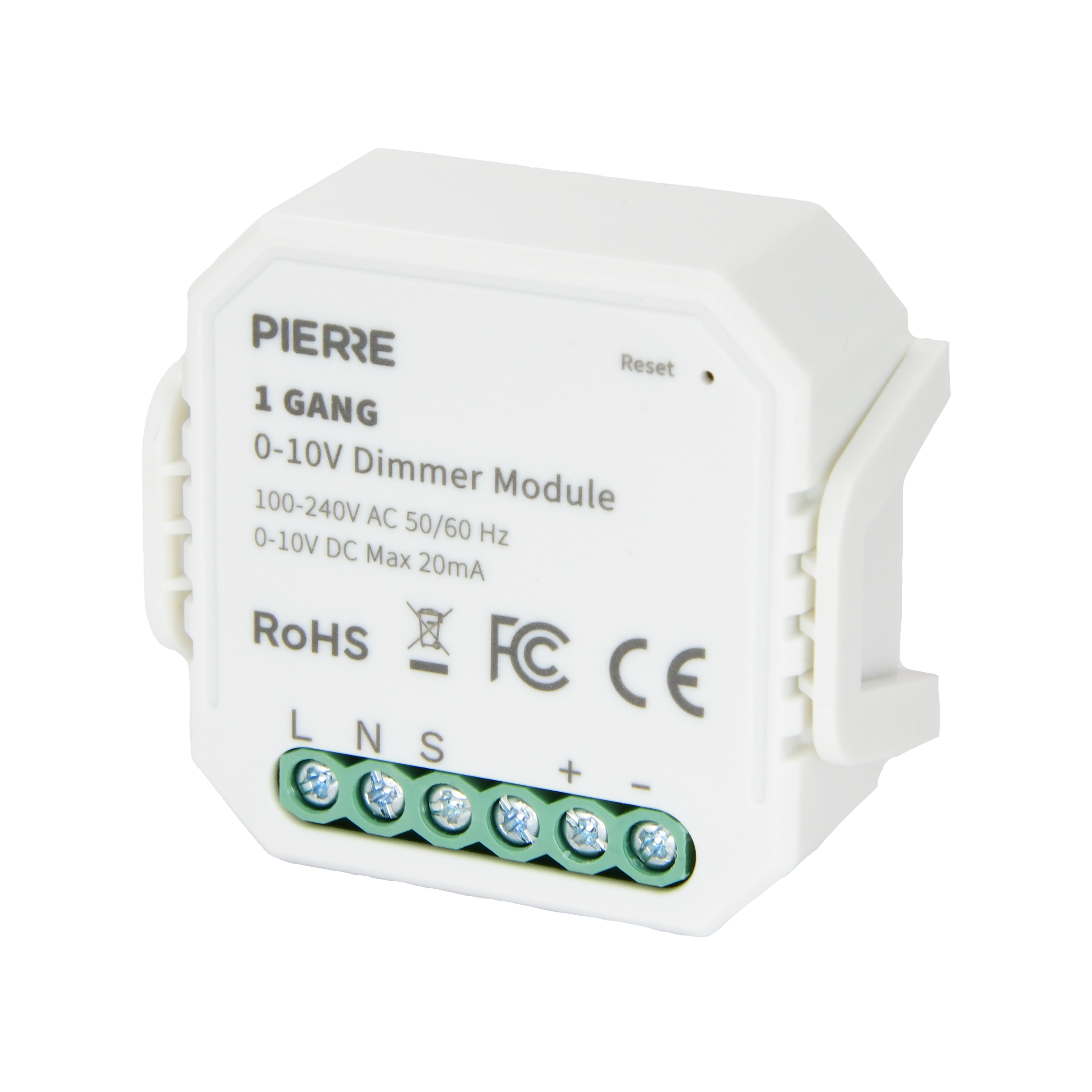

The PIERRE Wave - 0-10V Dimmer Module operates on a 100-240V AC 50/60Hz power supply and is designed for dimming applications using the 0-10V protocol. With L+N wiring, the module ensures stable and efficient performance, making it ideal for integrating with contemporary lighting systems, including LED drivers and fluorescent ballasts.
This module supports smooth dimming control, enabling users to adjust lighting levels with precision. Its compact design fits into standard switch boxes, facilitating straightforward installation in both residential and commercial settings. The module incorporates advanced safety features such as overload, overvoltage, and thermal protection, ensuring long-term reliability. By integrating seamlessly with the PIERRE Smart Home system, the dimmer allows for remote control and automation, enhancing convenience and energy efficiency.
Print user manual for 0-10V Dimmer Module (L+N)

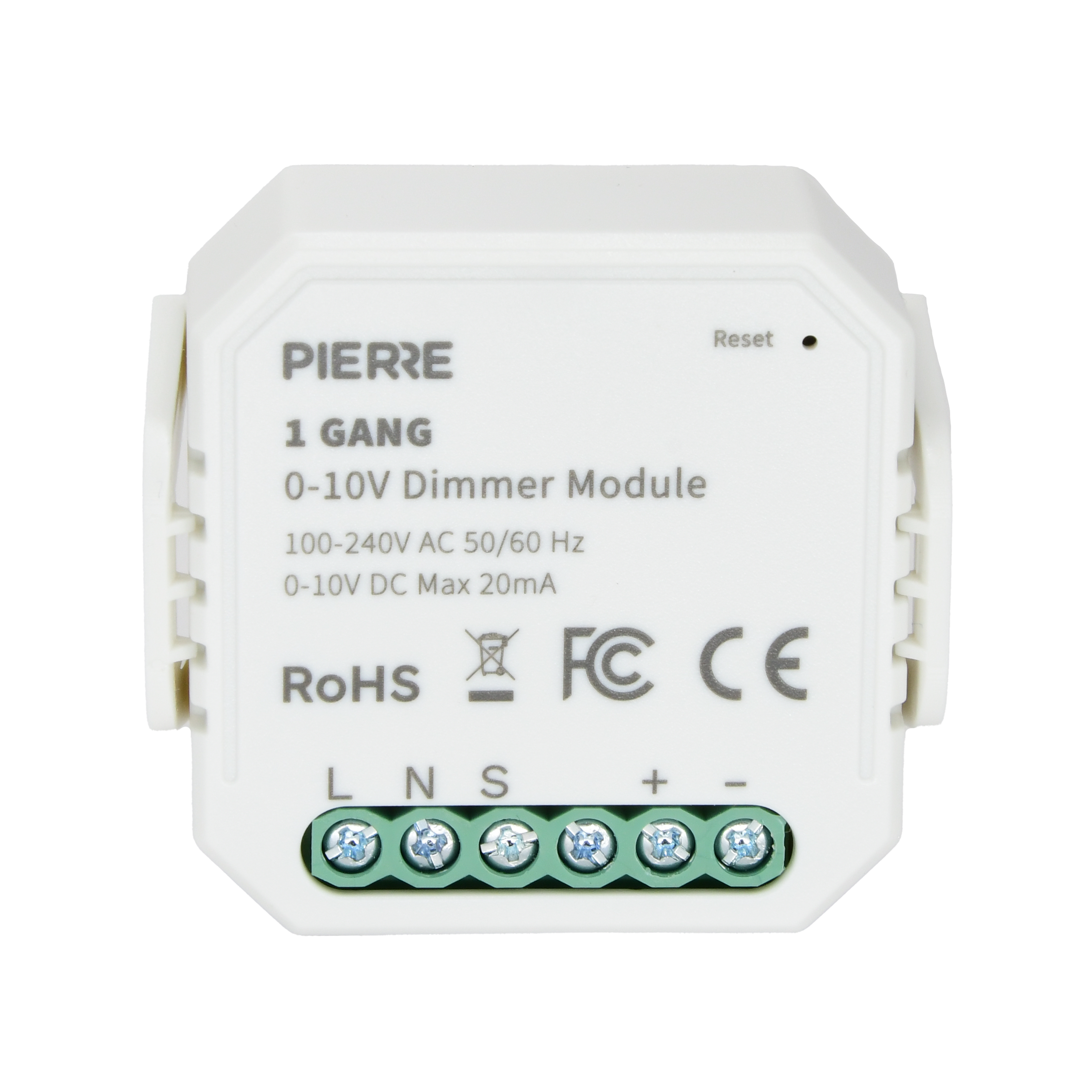

- Reset Key
- Indicator Light

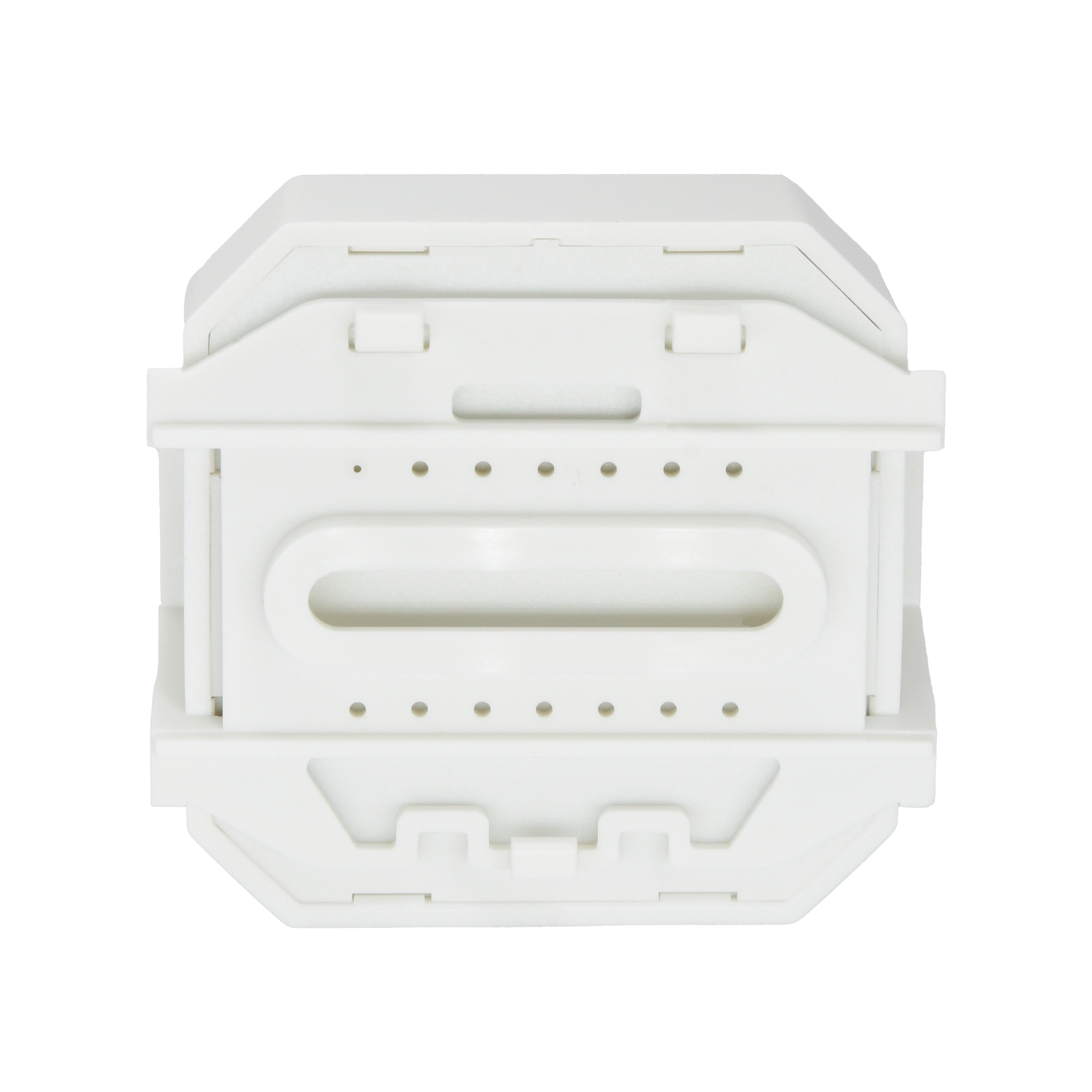

- Mounting Clip
- Without Mounting Clip
- W: 46 mm
- H: 46 mm
- D: 18 mm
- With Mounting Clip
- W: 50 mm
- H: 46 mm
- D: 22.5 mm
Power supply mode
100-240V AC 50-60 Hz
Connectivity
Zigbee
Frequency
2.4GHz-2.484GHz
Wiring
N - Neutral L - Line
Panel material
ABS+PC material
Product color
White
Number of channels
1 channel
Operation range
200m
Operating Temperature °C
-10°C - +40°C
Operating Temperature °F
+14°F - +104°F
Operating Humidity % RH
≤ 80% RH
Safety features
Overload, Over Voltage, Short Circuit, Thermal Protection, Static Protection, Surge Protection
IP rating
IP20
Max Load
400W (LED lighting)
Warnings:
- Installation must be carried out by a qualified electrician in accordance with local regulations.
- Keep the device out of reach of children.
- Keep the device away from water , damp or hot environments.
- Install the device away from strong signal sources such as microwave ovens that may cause signal interruption resulting in abnormal operation of the device.
- Obstruction by concrete wall or metallic materials may reduce the effective operation range of the device and should be avoided.
- Do NOT attempt to disassemble, repair or modify the device.
- Safety First
- Always disconnect power before installation.
- Only trained professionals should perform the work.
- Comply with all relevant local and national codes (e.g., NEC, IEC).
- Installation Steps
- Isolate Power
Switch off the breaker and verify zero voltage. - Wire the Module
Connect terminals as per the wiring diagram:
Live (L), Neutral (N), Load
Optional: Control input (e.g., switch) - Install in Box
Place the module into the junction box. Avoid wire damage or strain. - Restore Power & Configure
Turn the power back on. Configure the module using the app or setup guide.
- Isolate Power
Tip: Keep your phone close to the module during setup (e.g., for Bluetooth or NFC pairing).
- With One Switch
- With Two Switch
- Without Switch
The dimmer module reserves the access of manual override function for the end-user to switch on/off, or adjust the light level by push-switch.
- Short Push (<1s): permanent on/off function.
- Long Push (>1s): adjust the brightness level.
Notes:
- Both the adjustment on App and push switch can overwrite each other, the last adjustment remains in memory.
- App control is synchronized with the manual switch.
- The “S” terminals may be left unconnected if no manual control is required.
Reset Methods:
- Option:
- Press and hold the reset button for about 10 seconds until either:
- the indicator light starts flashing rapidly, or
- the connected light begins to flash quickly.
- Option:
- Turn off the external manual switch.
- Then, press and hold the external button switch for about 10 seconds, until the indicator light or the connected light starts flashing quickly.
- Option:
- Turn off the device completely.
- Turn it on and leave it powered for about 10 seconds.
- Then, turn the device off and on 5 times in a row.
Important:
- Each power OFF time should last more than 3 seconds.
- Each power ON time should last less than 2 seconds.
The PIERRE Wave system is a user-friendly solution for integrating and managing smart devices through a central platform. The system consists of the following components:
A - Required Elements:
- PIERRE Wave Products: These smart devices, including lighting, thermostats, sensors, and other appliances, connect wirelessly to the PIERRE Wave Gateway. They provide essential functions and capabilities for the system.
- PIERRE Wave Gateway: The central unit linking all PIERRE Wave devices, the gateway manages communication and data exchange, ensuring security and stability. It supports remote access and control, with the default Berlin display interface, though users can choose any PIERRE display model.
B - Optional Elements:
- Mobile PIERRE App: This app allows users to manage and monitor the system from their smartphone or tablet, offering real-time updates and remote access. It provides convenience but is not necessary for basic system operation.
- Router: An optional component that enables internet connectivity, allowing devices to be accessed and controlled remotely.
- System Operation: The gateway can connect to the router via Wi-Fi or LAN for internet connectivity, enhancing remote management capabilities. PIERRE Wave products communicate wirelessly with the gateway, which acts as the central hub. This bidirectional communication allows data to flow both ways, enabling users to send commands and receive status updates through the Mobile PIERRE App. The app facilitates effective management and real-time feedback on device statuses.
Please scan the QR code to download PIERRE application
Log in with you Username and Password
Open Settings and press "Add Wave I/O"
Press and hold the Reset Key for 10 seconds (use a small, thin object like a paperclip) until the Indicator Light starts flashing
- Indicator Light
- Reset Key
- PIERRE Wave Gateway
Press "Find Devices"
PIERRE application will show the list of available devices. Press "Add found devices"
Enter Name, Role and Group settings and Save it
When the Light indicator stops flashing, the PIERRE Wave pairing process is finished
Q1: What should I do if I can’t configure the dimmer module?
- Please check whether the device is powered on.
- Make sure the PIERRE Gateway is available.
- Make sure the wiring is correct.
Q2: What device can be connected to this PIERRE dimmer module?
It can be connected to devices such as triac led light, incandescent lamp or halogen lamp.
Q3: What happens if the WIFI goes off?
You can still control the device connected to the switch module with your traditional switch and with PIERRE Displays.
Q4: How do I reset the device?
- Switch the button for 10 times, and wait for about 10s until the indicator light of the module flashes quickly.
- Press the reset key for about 10s until the indicator light of the module flashes quickly.
What devicese are needed for 0-10V Wave module to controll a dimmable LED stripe?
Required Devices and Components:
- Pierre Wave 0-10V Dimmer Module (L+N)
- This is the main module that provides control over the dimming signal for the LED driver.
- 0-10V Compatible LED Driver
- The LED driver must support 0-10V dimming and be compatible with the power and current requirements of your LED strip.
- LED Strip
- Select an LED strip compatible with the output of the LED driver. Ensure the voltage and current requirements match the driver’s capabilities.
- Pierre Wave Gateway
- Pierre Wave gateway required for configuring, controlling, and integrating the module into a Pierre system.
- Power Supply
- A compatible power supply for the LED driver. The voltage should match the LED driver and the strip (e.g., 12V or 24V, depending on your LED strip).
- Control Device (e.g., Smartphone or Pierre Display)
- A smartphone with Smart Pierre app or Pierre Display.
- Wiring Components
- Appropriate wires, connectors, and possibly a terminal block for secure connections between the dimmer module, LED driver, and LED strip.
