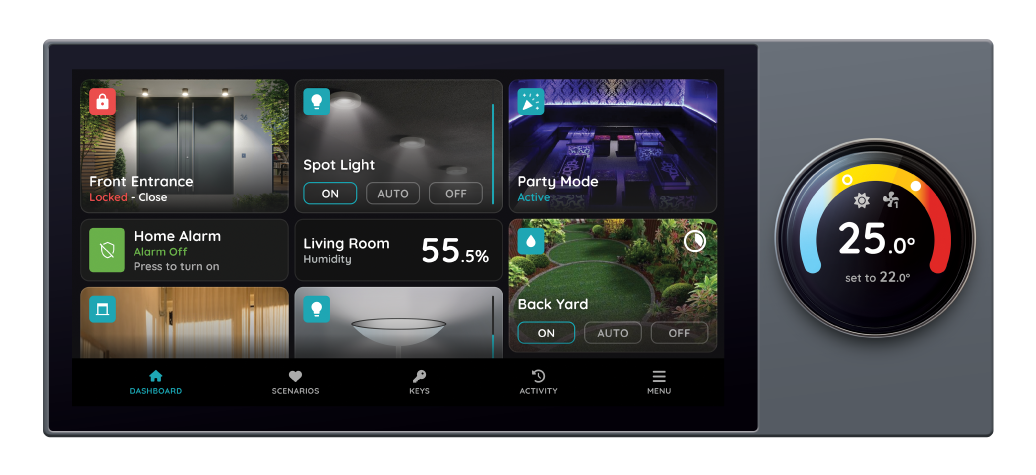

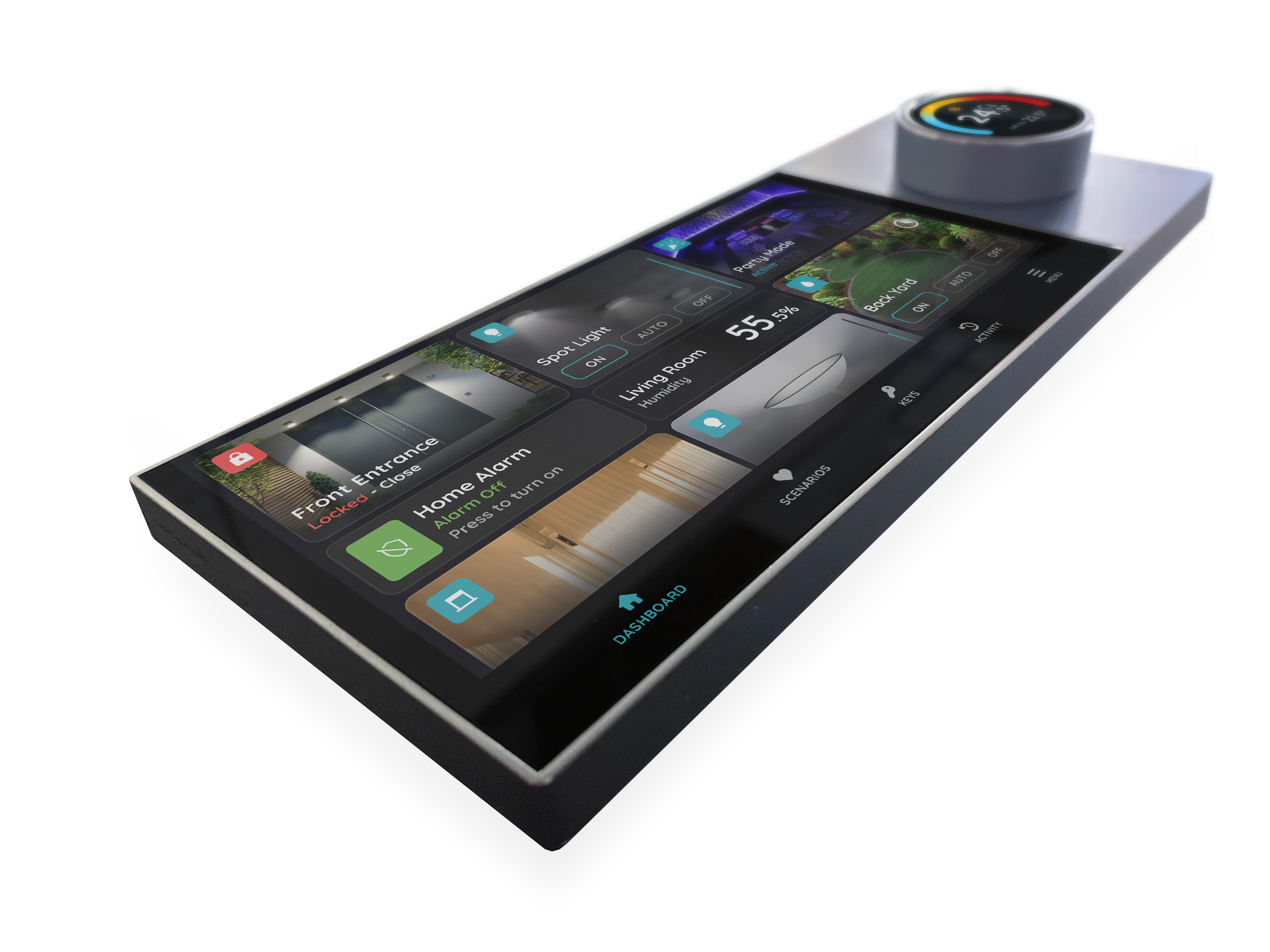

Room Control Display Helsinki 6"

• W: 20.5 cm
• H: 8.6 cm
• D: 1 cm

The PIERRE Wave system is a user-friendly solution for integrating and managing smart devices through a central platform. The system consists of the following components:

A - Required Elements:

1. PIERRE Wave Products: These smart devices, including lighting, thermostats, sensors, and other appliances, connect wirelessly to the PIERRE Wave Gateway. They provide essential functions and capabilities for the system.
2. PIERRE Wave Gateway: The central unit linking all PIERRE Wave devices, the gateway manages communication and data exchange, ensuring security and stability. It supports remote access and control, with the default Berlin display interface, though users can choose any PIERRE display model.

B - Optional Elements:

1. Mobile PIERRE App: This app allows users to manage and monitor the system from their smartphone or tablet, offering real-time updates and remote access. It provides convenience but is not necessary for basic system operation.
2. Router: An optional component that enables internet connectivity, allowing devices to be accessed and controlled remotely.

3. System Operation: The gateway can connect to the router via Wi-Fi or LAN for internet connectivity, enhancing remote management capabilities. PIERRE Wave products communicate wirelessly with the gateway, which acts as the central hub. This bidirectional communication allows data to flow both ways, enabling users to send commands and receive status updates through the Mobile PIERRE App. The app facilitates effective management and real-time feedback on device statuses.

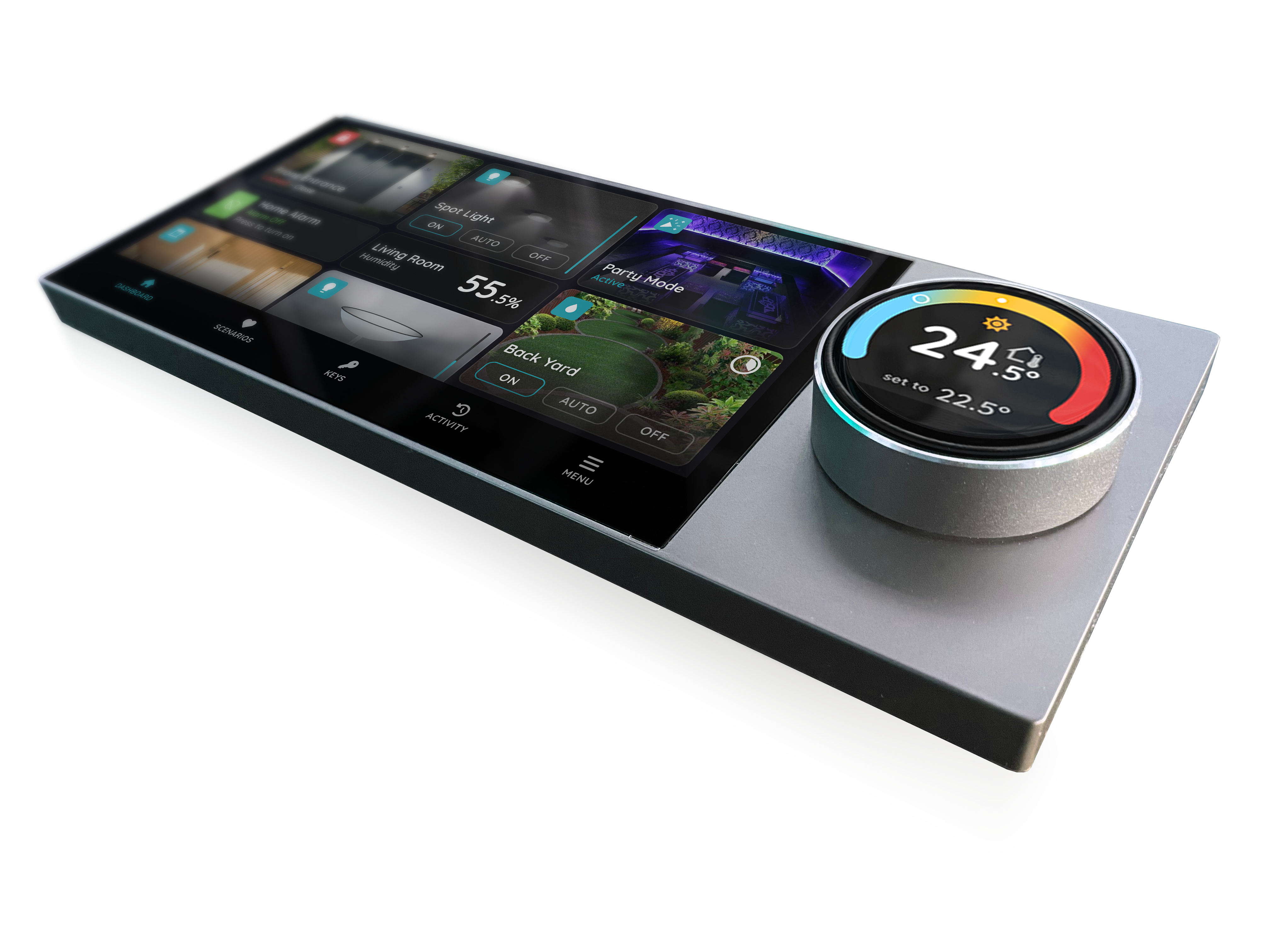

1. Light/distance sensor
2. Knob switch
3. Shortcut display
4. Main display

1. RS485 port
2. Ethernet RJ45 port
3. L & N wires

1. Quadruple array microphone
2. Temperature and humidity sensor

1. Reset
2. Speaker
3. Speaker

1. Ethernet RJ45 port
2. RS485 port
3. Output live wire 2 - max 200W
4. Output live wire 1 - max 200W

Turn off the main power supply in the electricity box and make sure that the love wire in the wall in not alive.

Remove the base of the smart panel and install it in the wall.

1. Turn it up with slat screwdriver

1. Install upwards as shown in the picture

Fasten the base to the wall electrical box with mounting screws and fix the smart switch back to the base.

If the smart switch is not flat after installation, do not press the screen violently, please check the wall box and base installation first.

Note that the screws should not be fixed too tight during installation in case any deformation or damage to the screen and hardware.

1. Wall
2. Wall Box

Follow next steps to add the Helsinki Display.

1. Open Displays
   1. When you opened Menu, under Settings tap on Displays in order to add the Helsinki Display.

2. QR code
   1. Scan QR code that is shown on the Display by your smartphone in order to add the Helsinki Display and follow next steps.

3. Invite New Display
   1. Scanning QR code will invite the new Helsinki Display user.
   2. To confirm tap on the button Done.
