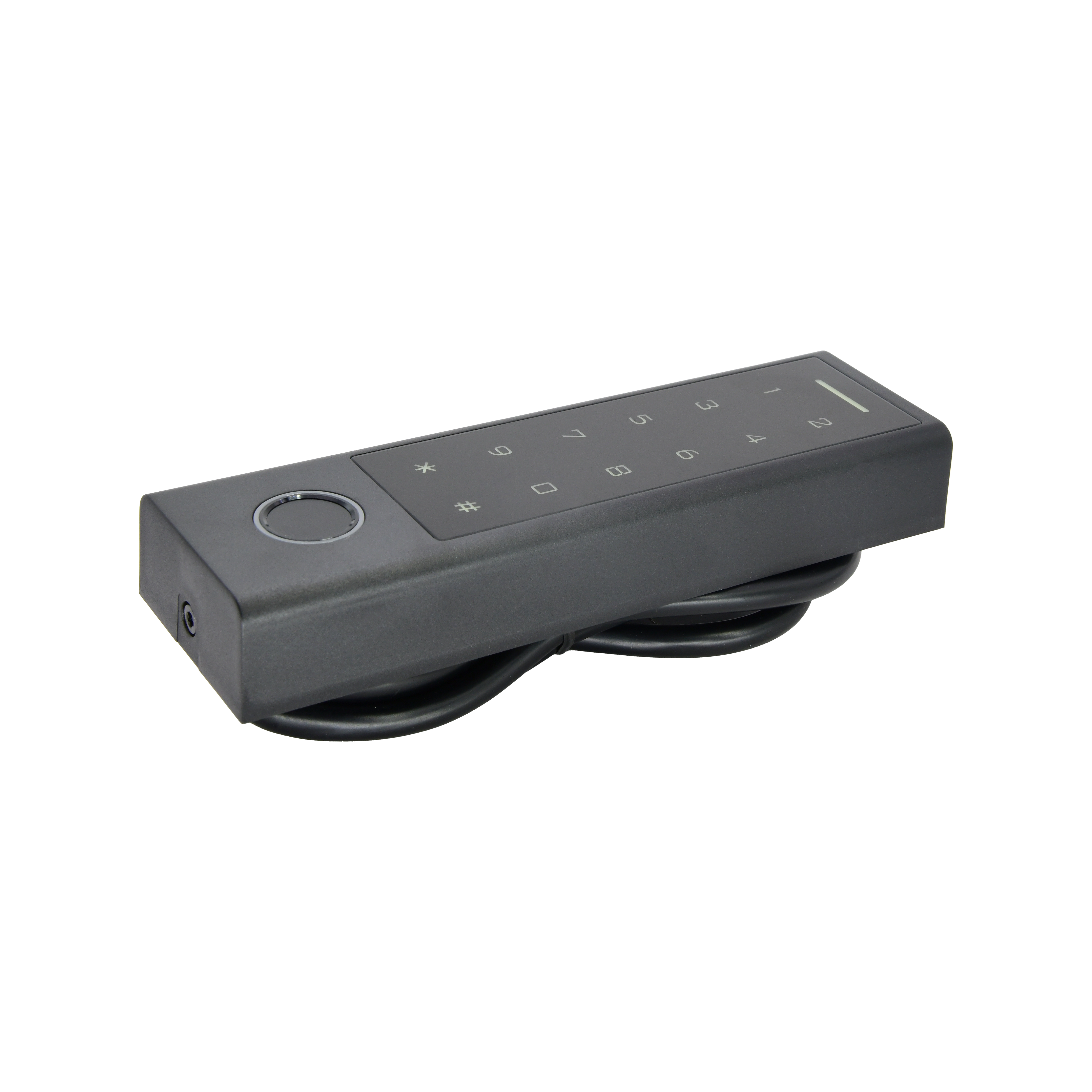

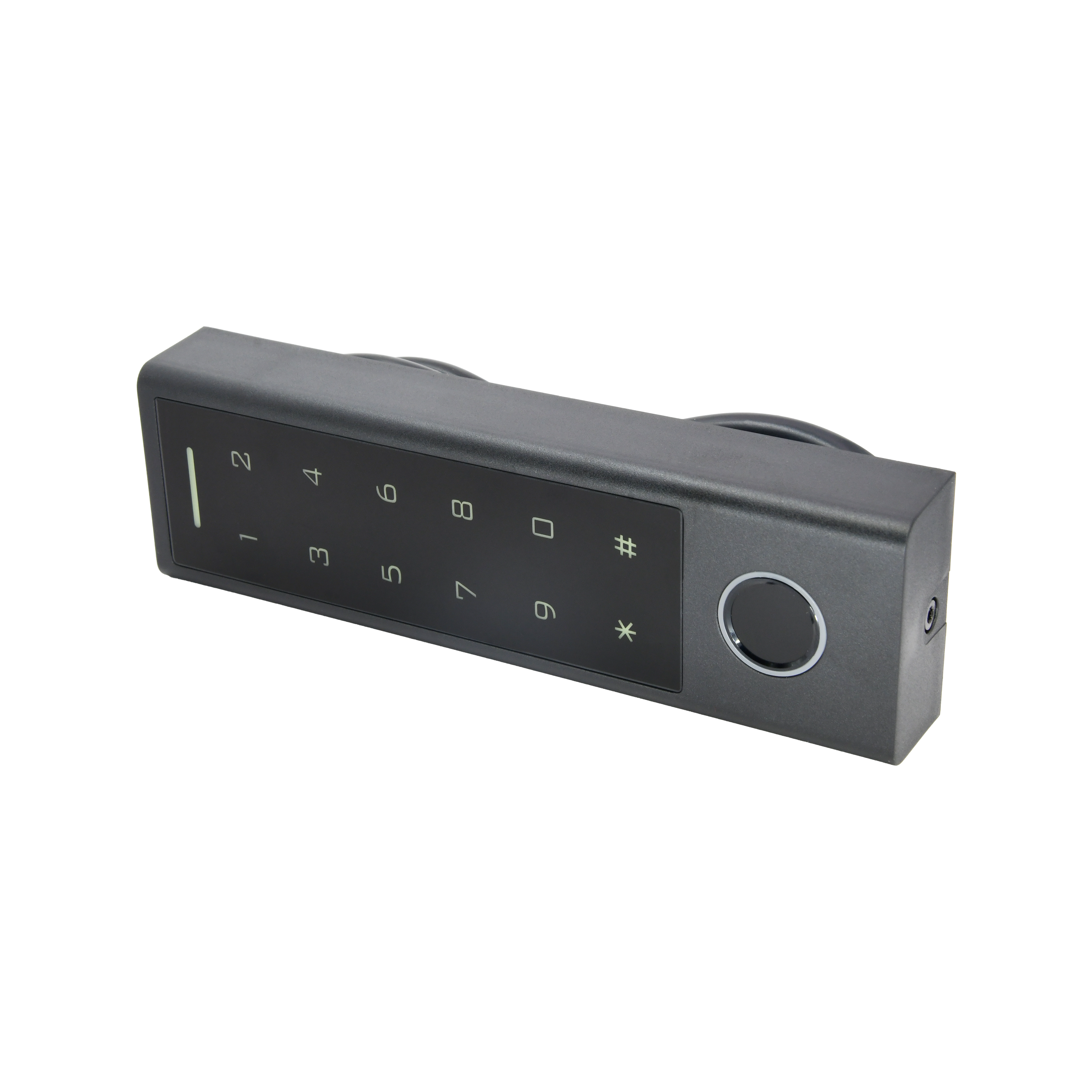

The PIERRE Pro RFID Reader is an advanced access control solution combining fingerprint recognition, touch keypad, and RFID technology, providing secure entry through multiple methods: fingerprint, PIN, card, or smartphone. With capacity for up to 1000 hardware users and 100 app-based users, it’s ideal for versatile access needs.
Operating on 12-18V DC, the reader is designed for durability in various environments, featuring IP66-rated waterproof protection for outdoor use. The device integrates seamlessly with security systems via adjustable relay output timing and Wiegand compatibility, making it adaptable for both residential and commercial applications.
Print user manual for RFID reader (Keypad + Fingerprint)
Power supply mode
12-18V DC
Max Load
2A
Panel material
ABS plastic
Product color
Black
Mounting
Wall
LED Indicators
Yes
Operating Temperature °C
-30°C ～ +60°C
Operating Temperature °F
-22°F ～ +140°F
Operating Humidity % RH
0 - 98% RH, Non condensing
Safety features
Overload, Short Circuit, Thermal Protection, Tamper alarm
IP rating
IP66
PIN Length
4-6 digits
Idle Current
≤ 60mA
Active current
≤ 150mA
Access Modes
Smartphone, Card (EM & Mifare,) PIN, Fingerprint
User capacity
Hardware User: 1000, APP User: 100, including 255 card/PIN users, 200 Fingerprint
Proximity Card Reader Technology
125KHz/13.56MHz
Read Range
2-6 cm
Adjustable Relay Output Time
0-99 seconds (default 5 seconds)
Wiegand Interface
EM card: 26-44 bits, Mifare: 26-58 bits
