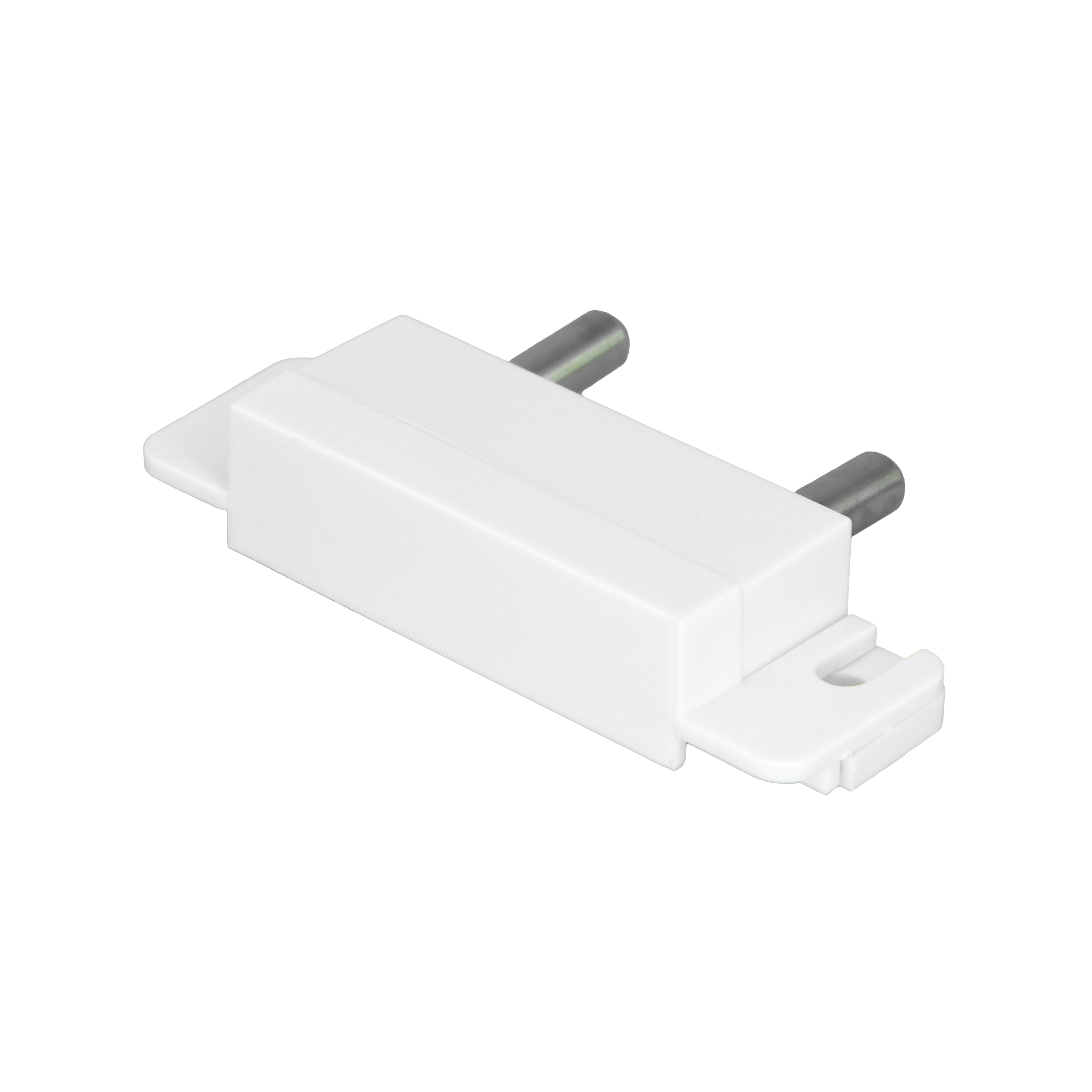

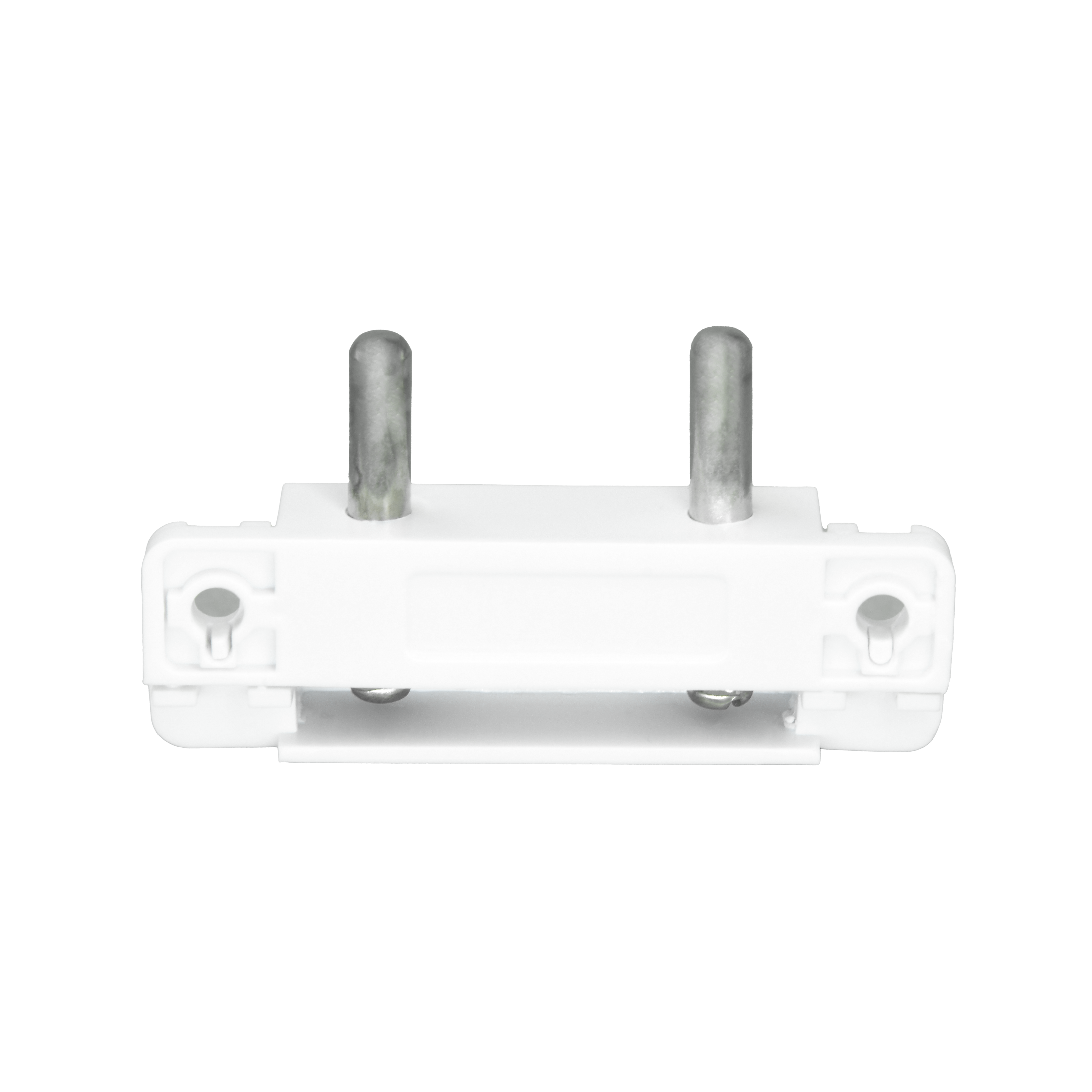

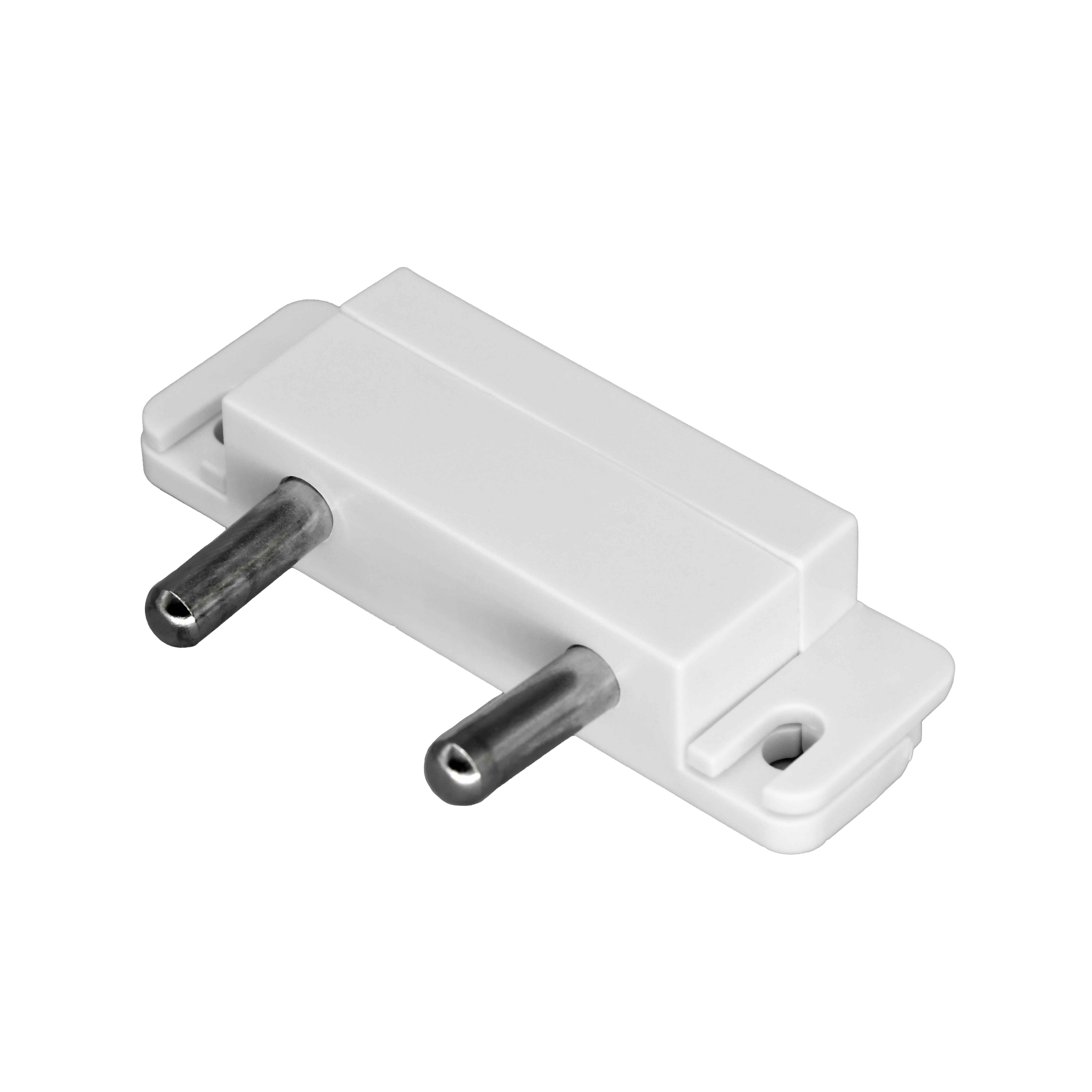

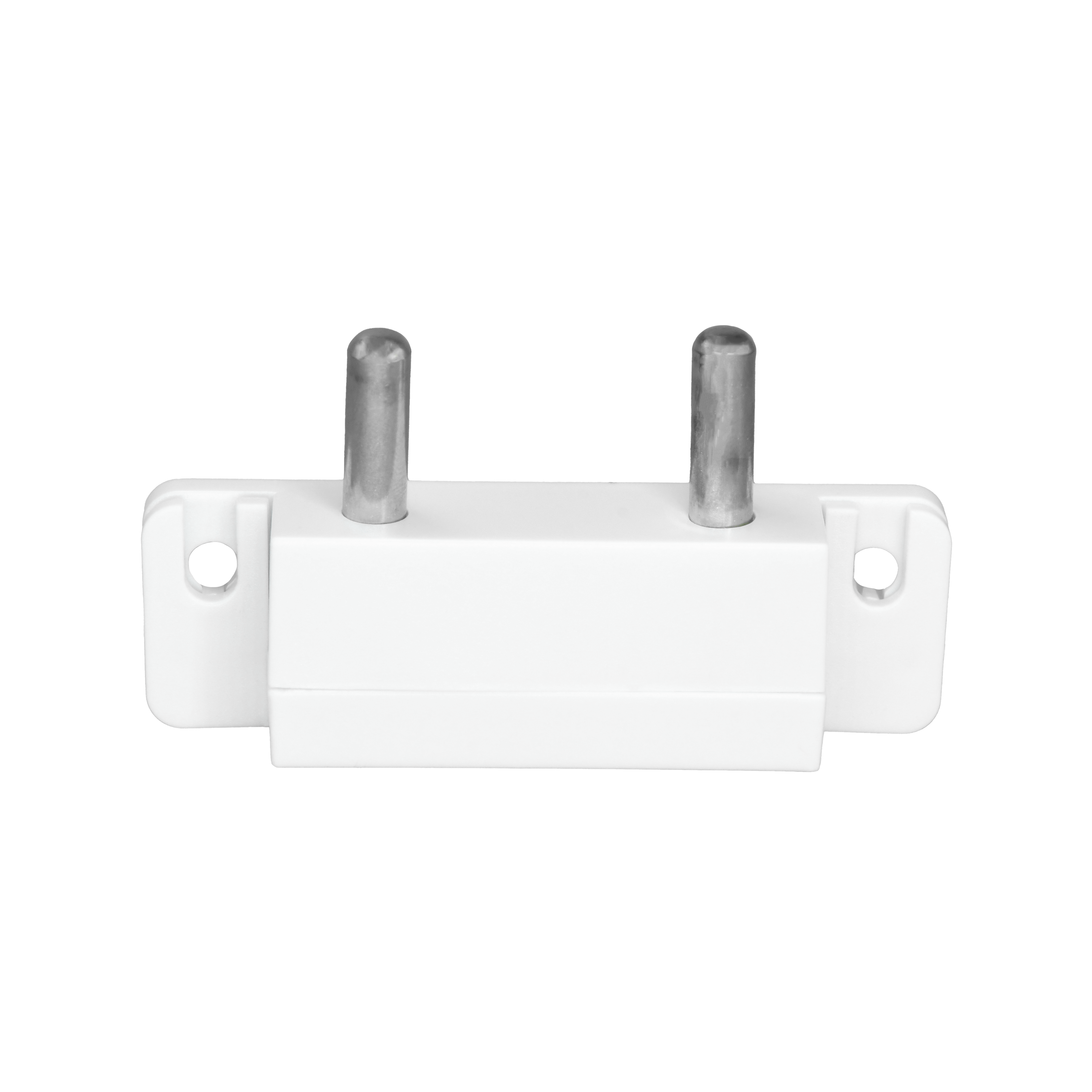

The PIERRE Pro Flood Sensor is designed for environments where water leakage detection is critical, such as basements, bathrooms, and utility rooms. It features a robust ABS construction with an IP67 rating, ensuring protection against dust and water ingress. The sensor is equipped with an NPN-type switching mechanism and outputs high and low signal levels depending on the presence of water, enabling seamless integration with alarm systems for immediate alerts.
Operating on a DC voltage range of 5-24V, the sensor has a maximum current of 0.15A and operates with minimal power consumption (0.5W). Its installation is straightforward, designed to be mounted on the floor or wall for optimal water contact. The device includes high insulation resistance, ensuring reliable performance even in humid conditions.
Print user manual for Flood sensor
- W: 63 mm
- H: 35 mm
- D: 13 mm
Power supply mode
DC 5-24V
Max Load
0.5W
Current
0.15A
Panel material
ABS plastic
Product color
White
Built-in Sensors
Flood
Operating Temperature °C
-20°C - +80°C
Operating Temperature °F
-4°F ～ +176°F
Safety features
Short Circuit, Thermal Protection, Tamper Protection, Disconnection alarm, Anti-Flammable Housing, Static Protection, Surge Protection
IP rating
IP67
Insulation Resistance
≤0.3MΩ
- Connect PIN 1 of the leak sensor to a digital input on the controller (e.g., IN1).
- Connect PIN 2 of the leak sensor to the GND terminal of the input side.
- Connect the 12V power supply to the controller’s +12V and GND terminals.
- Choose Controller
- Tap on the Controller that you would like to add new I/O to.
- To edit the I/O, click on the Controller to which the I/O is added.
- Add button for Inputs
- Inputs tab is selected.
- List of Inputs is shown.
- In order to add new Input tap on the Add button.
- Choose type - Inputs
- From the list that is shown tap on the desired I/O that you would like to add.
- New Leakage sensor
- Fill the following form:
- Name - Write the name of the Leakage sensor.
- Role - Choose Role from the list.
- Group - Choose Group from the list. Group is a group of I/O and scenarios that seems most logical to you.
- Pin - Choose Pin from the list. Pin is physical place on the Controller where I/O is connected to it.
- Photo - Choose photo for the Leakage sensor.
- Identifier - This field is the identifier of the I/O in the electrical project.
- Advanced - You can choose type of the signal that activates or tiggers the Leakage sensor: rising, falling, change, change inverted.
- Timeout - It is the duration for which the Leakage sensor will remain active in auto mode.
- When you want to confirm your choice tap button Save and Submit.
- Fill the following form:
- Select Roles - Inputs
- Tap in the field Roles.
- Select checkbox/checkboxes (for multiple choice) next to the Role/Roles that you would like to choose.
- To confirm selection tap the button Save/Done.
- Select Groups - Inputs
- In this step you should select Group.
- Select check box/check boxes next to the desired Group/Groups from the list.
- When you want to confirm your choice tap button Done/Save.
- Change photo
- Tap on the photo of the Leakage sensor.
- You have three options:
- Open Library - The phone’s Library will open.
- Open Camera - You can take a picture using your smartphone.
- Choose default image - These images are prepared in advance in order to provide a complete and seamless experience.
- Choose Pin
- Tap on the radio button next to the Pin that you would like to choose.
- To confirm selection tap on Save/Done.
- Advanced - New Leakage sensor
- Click radio button next to the type of signal that you would like to choose.
- You can choose:
- Rising
- Falling
- Change
- Change inverted
- You can choose type of the signal that activates or triggers the Leakage sensor.
