PIERRE PRO Controller

Updated: 7 Sep 2025
PIERRE PRO Controller

Product specifications

Measurements
Height
8.9 cm
Length
15.6 cm
Width
3.1 cm
Weight
213 g
Measurements (box)
Length (package)
17 cm
Width (package)
3 cm
Height (package)
10 cm
Weight (package)
250 g
Specifications
Power supply
DC 12V 1A
Input Voltage
12V DC
Output
16
Power
12V
Consumption
1.50W
Maximum Load Per Output
1A
Output Voltage
12V DC, 5V DC
Max load
2A
Over Voltage Range
12V DC - 15V DC
Current
0.10A
Connectivity
10M/100M Ethernet RJ45
2.4 GHz Wi-Fi (802.11 b/g/n)
Modbus
Panel material
ABS+PC material
Product color
Black
Mounting
DIN Rail
LED Indicators
Yes
Operating Temperature °C
0°C - +55°C
Operating Temperature °F
+32°F - +131°F
Operating Humidity % RH
5% - 90% RH Non-condensing
Altitude
<3000m
Safety features
Over Voltage
Reverse polarity
Certificates
Declaration-of-conformity_PRO.pdf
AAA_PP-C-PRO.pdf
Pro
Controllers
SKU
PP-C-PRO
PIERRE

The PIERRE Controller PRO is engineered for smart home automation, providing enhanced capabilities for managing connected systems. With a 12V DC input and a power consumption of 1.5 W, it is designed for efficient energy usage. The controller offers dual output voltages of 12V DC and 5V DC, with each output capable of handling a maximum load of 1A, ensuring compatibility with a variety of devices.

This model features flexible integration into existing systems and enabling effective remote management. It is optimized to perform reliably across a range of temperature and humidity conditions, suitable for diverse applications, including those at elevated altitudes.

Incorporating safety features such as reverse polarity protection and overvoltage protection ensures the unit's durability and operational reliability. The PIERRE Controller PRO is a robust solution and has a reliable control over smart home systems.

Warranty
Standard product warranty of 2 years.
User manual Collapse

Print user manual for PIERRE PRO Controller

Product Description

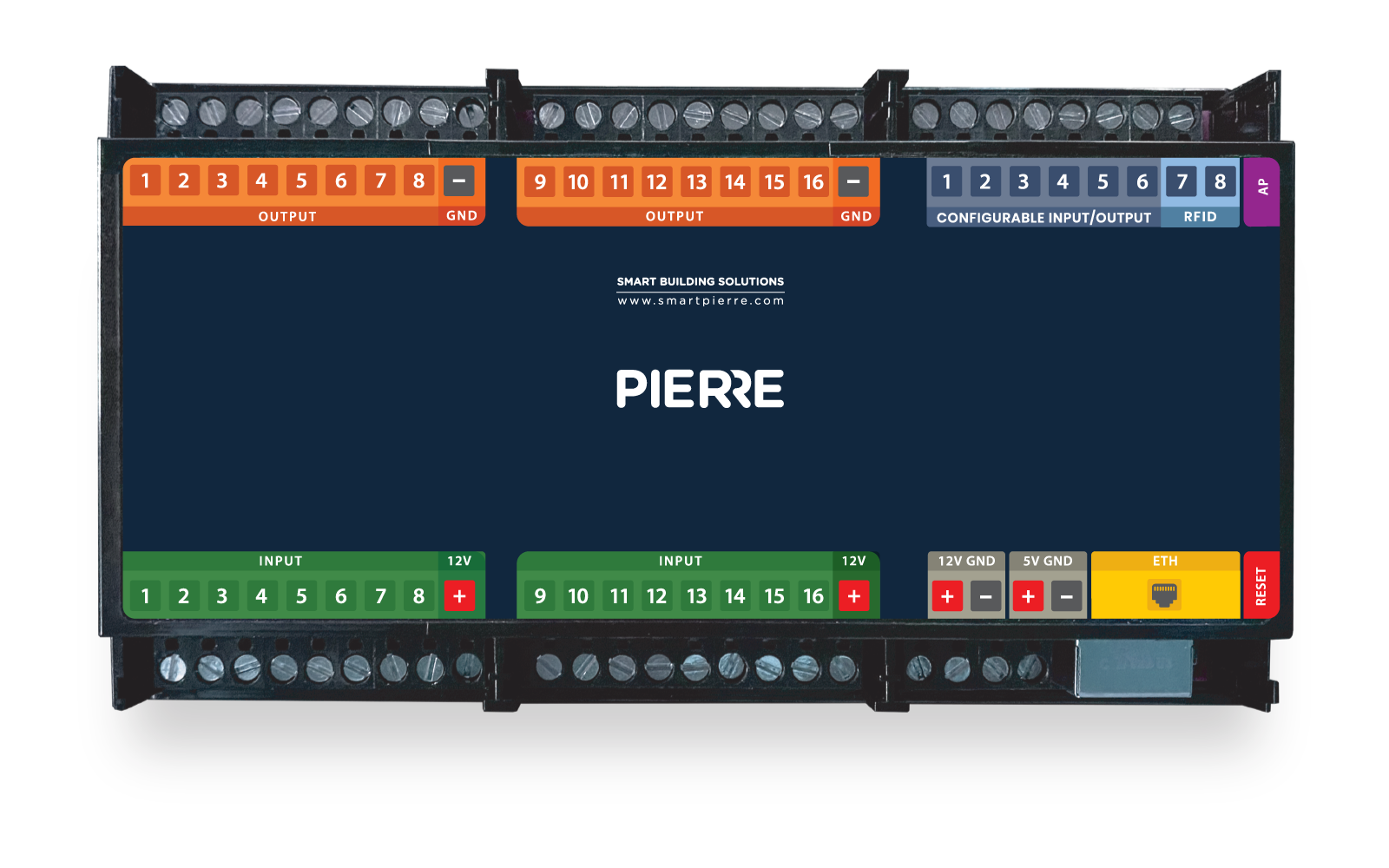

Description of the PINs on the Controller:

  1. INPUT from 1 to 16 ports - INPUT for sensor wires and buttons
  2. Power supply for the sensor
  3. PLUS - MINUS connection to a voltage of 12 V
  4. PLUS - MINUS connection to a voltage of 5 V
  5. ETH: Connecting to the network
  6. Reset button
  7. OUTPUT - from 1 to 16 ports: OUTPUT to wire the corresponding actuator device that will activate when it receives input from the sensors, buttons, smartphone, display or automation.
  8. GRD - Ground wire (-)
  9. A combination of digital inputs or outputs
  10. Digital input - 2 ports used only for RFID communication (Wiegand 34bit)
  11. AP - access point - It is a working mode used for the initial setup of the controller and for modifying configuration settings later while the controller is in operation.
  12. LED - indicator of network connection-It provides essential information about the controller’s current status, making it easy to monitor its connection, operation mode, and maintenance activities.

GOOD TO KNOW: If one Input has influence on the Output they both should be added to the same Controller. For example in situation when RFID reader opens the door, they should be add to the same Controller for best performances.

Controller Color Status

The colors that shows different statuses of the Controller:

  • Green – Online:
    • The controller is online and connected to the network, functioning as expected.
  • Red – Offline:
    • The controller is offline, indicating a disconnection from the network or that there is no internet access.
  • Light Blue – AP Mode:
    • The controller is in Access Point (AP) Mode, meaning it is broadcasting its own network, allowing devices to connect directly to the controller for setup or configuration.
  • Dark Blue – AP Mode with PIERRE Partner:
    • The controller is in AP Mode, and it is actively being managed through the Pierre Partner system. This mode is used for more advanced setup or partner-level configuration.
  • Purple – Searching for IP Address:
    • The controller is attempting to obtain an IP address from the router or network. It is searching for an internet connection.
  • Orange – Firmware Update:
    • The controller is in the process of downloading a firmware update, ensuring that the system stays up-to-date with the latest software and features.
Technical specification

Power supply mode

DC 12V 1A

Input Voltage

12V DC

Input

16

Output

16

Consumption

1.50W

Maximum Load Per Output

1A

Output Voltage Peripherals

12V DC, 5V DC

Max Load

2A

Over Voltage Range

12V DC - 15V DC

Current

0.15A

Connectivity

10M/100M Ethernet RJ45, 2.4 GHz Wi-Fi (802.11 b/g/n), Modbus

Panel material

ABS+PC material

Product color

Black

Mounting

DIN Rail

LED Indicators

Yes

Operating Temperature °C

0°C - +55°C

Operating Temperature °F

+32°F - +131°F

Operating Humidity % RH

5% - 90% RH Non-condensing

Altitude

<3000m

Safety features

Over Voltage, Reverse polarity

Power

12V

Number of inputs and outputs

16+16

Number of digital inputs/output

8

Wiring

Wiring the Controller to a Big Power Supply

  • Connect L and N terminals of the power supply to the AC mains (Live and Neutral).
  • The DC output provides +5V and GND, which power the connected device.
  • A rechargeable VRLA battery is connected in parallel with the DC output, with its + terminal to +5V, and – terminal to GND.
  • This allows the battery to charge while mains power is available, and supply backup power during outages.

Wiring the Controller to a smaller Power Supply

  • Connect the AC input terminals to mains power: L (Live) and N (Neutral).
  • The power supply converts AC to 5V DC, with outputs labeled +5V and GND.
  • Connect +5V to the device’s VCC input, and GND to its GND input.
  • Use proper gauge wires and double-check polarity to avoid damaging connected devices.
Commissioning Process

Commissioning mode is indicated by WHITE LED light on the controller.

  1. Powering On a New Controller
    1. Automatic Commissioning Mode: When you power on a new controller, it automatically enters commissioning mode.
  2. Commissioning Mode for Existing Controllers
    1. Entering Commissioning Mode: For an existing controller, enter commissioning mode by holding the "AP" button on the controller until the device enters setup mode.
  3. Scanning for Controllers
    1. PIERRE Partner App: In the Controllers screen of the PIERRE Partner application, the system automatically scans for controllers in commissioning mode.
      1. If the scanned controller is not present in the current building (meaning it has not been previously created), it will appear as "New Controller - $controllerChipID" with a blue Bluetooth icon. When you click on the new controller, a modal will appear with three options:
        1. New Controller
        2. Copy Existing Controller
        3. Restore Controller
      2. If an already configured controller in commissioning mode is detected in the building, it will display with a blue Bluetooth icon. When you click on the controller,  a modal will appear with three options:
        1. Edit Controller Settings
        2. Edit Network Settings
        3. Restore Controller.
Controller Setup Options
  1. New Controller
    1. Selection: When you select New Controller, a new modal appears with the following configuration fields:
      1. Name: Enter a name for the controller.
      2. Connection Type: Choose between Ethernet or Wi-Fi.
        1. If Wi-Fi is selected, the Wi-Fi picker will display all available networks. If a password-protected Wi-Fi is selected, a password field will appear.
      3. IP Settings:
        1. Choose between Automatic (DHCP) or Static IP.
        2. If Static IP is selected, the following fields will be available for configuration:IP Address
          1. Gateway
          2. Subnet
          3. DNS
    2. Save: After filling out all required details, click Save. This will create the controller and stop the commissioning process on the device.
  1. Copy Existing Controller
    1. Selection: Selecting Copy Existing Controller opens a modal displaying all available controllers across all buildings.
    2. Select Controller: Choose an existing controller to copy its settings. When you select a controller, a new modal appears with the following configuration fields:
      1. Name: Enter a name for the controller.
      2. Roles: Select the role for the new controller.
      3. Connection Type: Choose between Ethernet or Wi-Fi.
        1. If Wi-Fi is selected, the Wi-Fi picker will display all available networks. If a password-protected Wi-Fi is selected, a password field will appear.
    3. IP Settings:
      1. Choose between Automatic (DHCP) or Static IP.
      2. If Static IP is selected, the following fields will be available for configuration:
        1. IP Address
        2. Gateway
        3. Subnet
        4. DNS
    4. Setup Copy: The new controller will inherit all settings from the selected controller, including:
      1. I/O Settings
      2. Automations: For example, if the copied controller has a door sensor linked to a light (automation: when the door opens, the light turns on), these settings will be replicated on the new controller.
  1. Restore Controller
    1. Selection: Selecting Restore Controller opens a modal displaying all controllers across all buildings.
    2. Choose Controller: Select the controller to restore. When you select a controller, a new modal appears with the following configuration fields:
      1. Connection Type: Choose between Ethernet or Wi-Fi.
        1. If Wi-Fi is selected, the Wi-Fi picker will display all available networks. If a password-protected Wi-Fi is selected, a password field will appear.
      2. IP Settings:
        1. Choose between Automatic (DHCP) or Static IP.
        2. If Static IP is selected, the following fields will be available for configuration:
          1. IP Address
          2. Gateway
          3. Subnet
          4. DNS
    3. Controller Replacement: This option replaces the chipID of the selected controller with the new one. The controller will adopt the same setup as the original controller.
      1. Example: If a controller is damaged (e.g., by flood), a new controller can be restored to act as the previous one without reconfiguration.
Existing Controller in Commissioning Mode
  1. Edit Controller Settings
    1. Functionality: This option allows you to edit the controller’s settings. It is the same as the modal opened while holding the controller component, with the additional option to delete the controller which is available only while controller is in commissioning mode.
  2. Edit Network Settings
    1. Network Type: You can switch between Ethernet and Wi-Fi.
    2. Wi-Fi Network: You can change the Wi-Fi network and re-enter any required credentials.
    3. IP Settings:Modify the IP Address, Gateway, Subnet, and DNS as needed.
  3. Restore Controller
    1. Restore Configuration: This option will resend the configuration to the commissioning controller. It is useful if configuration fails or if commissioning a new controller fails for some reason.
    2. No Controller Selection: Unlike Restore Controller for a new controller, here you do not need to select another controller. The system will resend the configuration to the currently commissioning controller.
